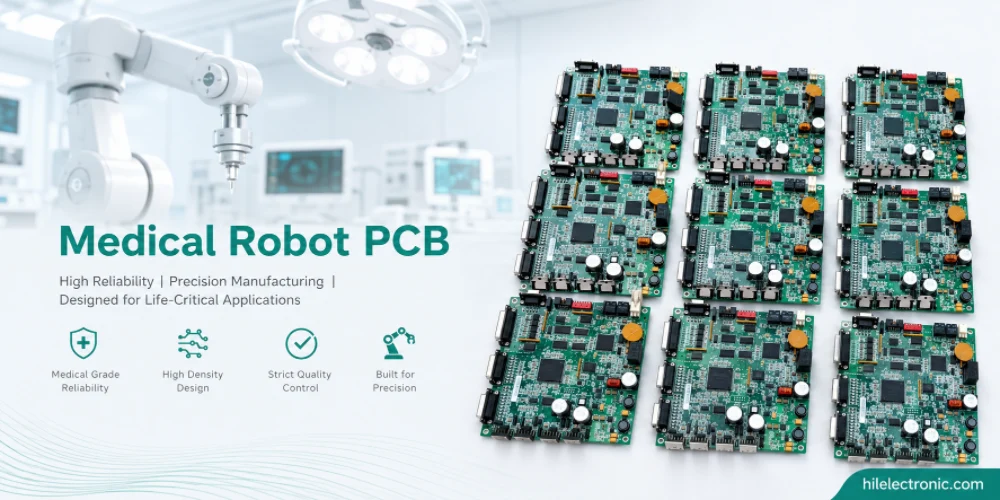

符合IEC 60601标准的医疗机器人PCB，具备可追溯性、灭菌和长期支持功能。

Medical robot PCBs support surgical robots, rehabilitation systems, imaging robots, laboratory automation, pharmacy automation, and other medical device platforms. These boards must meet stricter expectations for safety, documentation, traceability, manufacturing control, change management, and long-term service than ordinary robotics electronics.

This guide explains medical robot PCBs at the industry level: IEC 60601 safety implications, ISO 13485-style quality management, sterilization compatibility, regulatory documentation, long-term product support, production test, and controlled change. The FAQ has been shortened and reframed as industry questions rather than supplier-only qualification answers.

What Makes Medical Robot Electronics Distinct

在机器人系统中的作用

Medical robots — surgical robots, imaging robots, rehabilitation robots, laboratory automation — have the most demanding regulatory and reliability requirements in the robot category. Their electronics must meet medical device standards, support extensive documentation, tolerate sterilization procedures, and deliver quality expected in medical environments. What makes medical robot electronics distinct:

• Regulatory certification: FDA (US), CE MDR (Europe), and market-specific medical device approvals. Design and manufacturing evidence required.
• IEC 60601： medical electrical equipment safety standard. Determines isolation, leakage current, and safety architecture.
• IEC 62304： medical device software lifecycle. Manufacturing evidence for embedded software.
• Sterilisation compatibility: some medical robots undergo sterilisation between procedures. Materials, coatings, and construction affect compatibility.
• Per-unit traceability: component lot records, test data, and manufacturing history retained per unit for entire product lifetime.
• 质量管理体系： manufacturing operating under ISO 13485. Documentation and process control matching QMS requirements.

控制设计风险

For medical robot PCBs, manufacturability input should happen before connector placement, enclosure fit, fixture access, thermal paths, and harness routing are frozen. Late changes to these details usually trigger mechanical rework, test-fixture redesign, or reliability compromises that could have been avoided with early DFM review.

Component selection should include lifecycle status, approved alternates, package availability, temperature rating, and safety or isolation ratings where relevant. Medical robot pcbs often stay in production or service longer than consumer electronics, so unresolved sourcing risk becomes a field-support issue, not only a purchasing issue.

在系统层面，电路板的设计应基于功能、环境、使用寿命和测试覆盖率，而不仅仅是原理图。这可以避免常见的错误，即设计出技术上正确但难以装配、难以维护或安装到机器人后不够坚固的PCB。

Safety planning for medical robotics should be aligned with broader medical device PCB requirements 和 robot safety-interface electronics.

Safety Architecture per IEC 60601

Architecture Choices for Safety Architecture per IEC 60601

Safety architecture on medical robots meets IEC 60601 requirements. The main safety considerations are:

• 患者隔离： galvanic isolation between patient-contact circuits and other electronics. Reinforced isolation on patient-connected parts.
• 漏电流： patient auxiliary current and patient leakage current limited per IEC 60601. Design and test verify.
• Redundant safety: safety-critical functions implemented through redundant hardware paths.
• 故障安全默认值： all failure modes result in safe outcomes for the patient. Analysed and verified through FMEA.
• 紧急停止： clinician-accessible stop with defined response time. Redundant activation paths.
• 故障检测： continuous monitoring of safety-critical parameters. Fault triggers immediate safe state.

Validation Requirements for Safety Architecture per IEC 60601

可靠性取决于电路板设计中预留的裕量：铜箔宽度、隔离间距、散热、连接器固定、元件降额以及检测覆盖范围。制造部门应验证这些特性，而不是将PCB视为通用组件，采用通用的合格/不合格测试。

应通过带标签的连接器、易于访问的测试点、清晰的电路板型号以及序列号跟踪来考虑可维护性。当机器人现场发生故障时，良好的电路板级诊断功能可以让维修团队快速定位问题，而无需更换大型组件或退回整个机器人。

实际操作中，应选择满足信号、安全、散热和机械性能要求的最简单的结构。规格过高会增加成本，而规格过低则会导致测试或现场部署期间需要返工。

Manufacturing Under Quality Management System

Key Design Choices for Manufacturing Under Quality Management System

Manufacturing under a quality management system introduces specific process requirements. The main QMS-related manufacturing practices are:

• 记录流程： every manufacturing step follows documented procedures. Procedures versioned and controlled.
• 变更控制： process changes go through formal change control. Impact analysis and re-verification required.
• 组件可追溯性： component lots traced from receiving through assembly to specific board serial numbers.
• Test data retention: per-unit test data retained for product lifetime plus regulatory retention period.
• 不合格品处理： manufacturing defects tracked, analysed, and dispositioned through formal process.
• 亚太航空枢纽： corrective and preventive action for quality issues. Documented investigation and closure.

制造和可靠性方面的考虑

测试覆盖率要求会随着可靠性要求而变化。消费类应用所需的测试覆盖率低于工业应用；工业应用所需的测试覆盖率低于医疗应用；医疗应用所需的测试覆盖率低于安全关键型应用。使测试覆盖率与实际需求相匹配，既能控制成本预算，又能提供应用所需的可靠性保障。

制造文档在设计阶段往往投入不足，事后补建成本高昂。生产过程中收集的单元测试记录有助于多年后的现场调查；组件批次追溯性则有助于对现场退货进行事后分析。尽早规划文档的项目能够拥有所需的记录；而后期添加文档的项目往往会丢失原本需要的数据。

Sterilisation Compatibility Considerations

Key Design Choices for Sterilisation Compatibility Considerations

Sterilisation compatibility affects component selection and construction. The main sterilisation methods and their impacts are:

• Steam autoclave: high temperature steam. Standard for reusable equipment. Component and material selection must tolerate 121-134 °C moist heat.
• 环氧乙烷： chemical sterilisation. Compatible with most electronics; requires aeration.
• 伽马辐射： high-energy radiation. Damages many electronic components; used mostly on packaged single-use devices.
• 双氧水： low-temperature chemical sterilisation. Common on modern equipment.
• Manual disinfection: wipedown between uses. Housing and connector design must permit thorough disinfection.
• Non-sterilisable: some medical electronics are protected from patient contact and do not require sterilisation.

制造和可靠性方面的考虑

生产过程中的供应链可视性会影响成本和可靠性。具备主动采购能力的制造商能够应对原本会导致生产中断的配额周期；而缺乏主动采购能力的制造商则会将供应问题转嫁给客户。主动采购的价值在行业整体短缺时最高，在供应稳定时最低。

设计迭代周期受益于紧密的设计-制造反馈。能够及时提供DFM反馈的制造合作伙伴可以加快迭代速度；而反馈缓慢或流于表面的合作伙伴则会相应减慢迭代速度。那些部分基于反馈质量选择制造合作伙伴的项目，通常比那些仅以最低报价为选择标准的项目更快地完成原型制作阶段。

Regulatory documentation becomes stronger when traceability records connect to the production test workflow 和 precision sensor PCB assembly used for feedback control.

Documentation for Regulatory Submissions

安全功能要求

Documentation supporting medical device submissions requires specific manufacturing evidence. The main documentation categories are:

• Design History File: contribution from manufacturing to the customer DHF. Manufacturing process documentation.
• Device Master Record: manufacturing procedures and specifications for the device. Version-controlled.
• Device History Record: per-unit manufacturing records. Retained for regulatory period.
• 首件检验： initial production units verified against design specification. Formal report.
• 工艺验证： manufacturing process validated to produce conforming output. IQ/OQ/PQ documentation.
• Component certificates: material certificates and component qualification records. Traceable to specific production lots.

证据、诊断和可追溯性

产量区间经济效益对不同生产规模下工艺选择的影响各不相同。年产量100,000万件时有效的工艺，在年产量500件时往往无效；原型制作阶段适用的工艺，在大批量生产时往往不适用。根据实际产量匹配制造方法，才能确保每个产量区间的经济效益。

监管认证义务因应用和市场而异。客户提交的生产证明材料要求可能从极少（例如非监管市场的消费品）到非常详尽（例如保存期限严格的医疗器械）不等。在报价时明确认证要求的项目能够确保生产流程的正确设置；而后期添加认证要求的项目则有时需要对流程进行调整。

Lifecycle planning should also include controlled component alternates through 电子元件采购, especially for medical programs that need repeat builds over many years.

Long-Term Product Support Obligations

Key Design Choices for Long-Term Product Support Obligations

Long-term product support obligations differ for medical devices. Programs typically must support production, service, and last-time-buy planning across regulatory-defined periods. The main considerations are:

• Component obsolescence management: specific components going out of production during product lifetime. Managed through last-time-buy, alternate qualification, or design change.
• Manufacturing continuity: ability to produce the same device to the same specification for years. Requires stable process and supply chain.
• Field service support: parts availability, repair capability, and field failure investigation across product lifetime.
• Regulatory record retention: manufacturing records retained per regulatory requirement. Typically 10+ years post product discontinuation.
• Product change management: formal change control including regulatory notification where changes affect approved device design.

制造和可靠性方面的考虑

由同一制造合作伙伴集中生产，可以保留跨代产品积累的机构知识。拥有多代类似产品制造经验的合作伙伴深谙具体问题，了解哪些工艺调整可以提高良率，以及哪些设计模式易于制造。这些知识无法轻易转移给新的合作伙伴。

持续的工程制造对话能够随着时间的推移，改善产品本身和供应商关系。反馈给工程部门的良率数据有助于改进设计；反馈给现场的数据则有助于改进设计和制造工艺。积极开展这种对话的项目，其产品在各个世代中都能不断进步。

有关相邻设计决策，请参见 robot sensor PCB assembly for medical measurements 和 robot I/O and safety interface PCB documentation guide.

Manufacturing Medical Robot PCBs at Highleap

生产前DFM审查

Highleap manufactures medical robot electronics with the specific discipline medical devices need. The specific capabilities include:

• ISO 13485 QMS: manufacturing operating under medical device quality management system.
• Isolation manufacturing: reinforced isolation construction meeting IEC 60601 requirements.
• Per-unit traceability: component lot records and test data retained per unit for regulatory period.
• 工艺验证： IQ/OQ/PQ documentation for manufacturing processes.
• 首件检验： formal FAI report for regulatory submissions.
• 长期支持： component obsolescence management and manufacturing continuity across product lifetime.

测试、可追溯性和构建交接

机器人制造工艺融合了多种传统电子领域的实践经验。例如，消费电子领域注重成本控制和批量生产；工业电子领域强调可靠性工程和长使用寿命；汽车电子领域关注振动和环境适应性；医疗电子领域则强调文档记录和可追溯性。机器人技术正是受益于这些经验的融合。

将制造业视为战略性环节——例如投资于供应商关系、共享预测信息、协调产能——的项目，通常比将制造业视为交易性环节的项目表现更佳。交易性的做法虽然节省了谈判时间，但却错失了长期供应商合作关系带来的累积效益。

Medical Robot PCB FAQs

What is a medical robot PCB?

A medical robot PCB is an electronic assembly used in a robotic medical device such as a surgical robot, rehabilitation robot, imaging robot, laboratory automation system, or pharmacy automation platform. It may handle control, sensing, motion, power, communication, or safety functions under medical-device quality and documentation requirements.

How does IEC 60601 affect medical robot PCB design?

IEC 60601 influences isolation, leakage current, creepage and clearance, protective earth, patient-applied parts, risk management, and safety testing. The PCB is only one part of compliance, but board layout, component selection, power architecture, and documentation must support the complete medical electrical equipment safety case.

Why is ISO 13485 relevant to medical robot PCBs?

ISO 13485 defines quality management expectations for medical device manufacturing. For PCBs, this affects documented processes, supplier control, traceability, change management, nonconformance handling, validation, and record retention. Even when the PCB manufacturer is not the legal device manufacturer, its records may support the customer's regulatory file.

What does sterilization compatibility mean for PCBs?

Sterilization compatibility means the board, coating, connectors, labels, adhesives, and enclosure interfaces can tolerate the intended sterilization or cleaning method. Autoclave, hydrogen peroxide plasma, ethylene oxide, alcohol wipe-down, and other methods impose different material stresses. Not every medical robot board is sterilized, but reusable patient-adjacent assemblies may be.

What traceability is needed for medical robot electronics?

Traceability typically includes component lot data, board serial numbers, production route, inspection results, test records, firmware version, rework history, and change records. The required depth depends on the device risk class and customer quality plan. Traceability should be designed into production before the first regulated build.

How long should medical robot PCB records be retained?

Record retention depends on market, device class, customer requirements, and quality agreement. Medical robot programs often need records retained for many years, sometimes through the device lifetime plus an additional regulatory period. Retention expectations should be agreed before production because rebuilding missing manufacturing evidence later is difficult.

How are medical robot PCBs tested during production?

Testing can include AOI, X-ray, electrical test, firmware programming, functional test, isolation or hipot testing where applicable, leakage-related checks at system level, calibration, and final inspection. Test limits should be documented and tied to serial numbers. Any rework should follow controlled procedures and be recorded.

What should be checked before choosing a medical robot PCB manufacturer?

Check experience with controlled documentation, traceability, change control, regulated customer audits, IPC workmanship expectations, functional test, long-term sourcing, and quality agreements. The supplier should understand that medical robot manufacturing evidence is part of the product's compliance and lifecycle support, not only a shipment record.
