Kugadzira Bhodhi reDunhu reNhare uye Kuungana kweHDI
Smartphone yega yega inoenderana nebhodhi remafoni rakagadzirwa kuti rikwanise kushivirira rinoyerwa muma microns—gungano rine laminated rakawanda apo nzira dzemhangura dzakatetepa kupfuura bvudzi remunhu dzinotakura zviratidzo pakati pemazana ezvikamu kubva paDC power kusvika ku millimeter-wave 5G. KuHighleap Electronics, tinogadzira mabhodhi emafoni evatengi veOEM neODM pasi rese, tichisanganisa kugadzirwa kwe12-layer HDI nekubatanidzwa kwakazara kweSMT pasi pedenga rimwe chete reISO 9001-certified. Gwaro iri rinofukidza zviri mukati mebhodhi remazuva ano remafoni, nei kushivirira kwekugadzira mafoni kuri kwakaoma, uye chii chinoparadzanisa mutengesi ane hunyanzvi kubva kune anozokubhadharisa mari yakawanda mubasa iri.
Ungave uri mainjiniya wemidziyo yemagetsi uri kuronga tape yako yekutanga yeHDI, timu yekutenga zvinhu inokodzera mubatsiri mutsva wePCB, kana kuti ODM iri kuchinja kubva pakugadzira kuenda pakugadzira—chokwadi chekugadzira pano chinoshanda zvakananga kune zvaunosarudza.
Mukati
Kuumbwa kweBhodhi reDunhu reNhare
Bhodhi remagetsi refoni harisi ndiro rakatsetseka rine machipisi akabatanidzwa. Iro chivakwa chakanyatsogadzirwa chine zvidimbu zvemhangura gumi kusvika gumi nezviviri, ukobvu hwese huri pasi pe10mm, chinotakura masaini kubva kumagetsi eDC kuenda ku40 GHz RF panguva imwe chete. Chidimbu chimwe nechimwe chinoshanda basa remagetsi—kutungamirira masaini, kugoverwa kwesimba, pasi peEMI, kana RF antenna feed—uye zvidimbu izvi zvinoshanda pamwe chete nemagetsi: sarudzo paChidimbu 4 inokanganisa maitiro echiratidzo paChidimbu 7 pa5 GHz.
Ruzivo rweKugadzira
Dhizaini yekurongedza zvinhu—yakasarudzwa isati yaiswa nzira yekudzosera zvinhu—inosarudza denga remagetsi rebhodhi uye mutengo waro wekugadzira. Kugadzirisa hurongwa hwekugadzirisa zvinhu mushure mekunge nzira yatanga kushandiswa ndeimwe yezvikanganiso zvinodhura zvikuru mukugadzirwa kwePCB dzemafoni.
Substrate: Hwaro hweMashandiro Ese Emagetsi
Mabhodhi emagetsi epamusoro anoshandisa ma FR4 laminates akagadziriswa ezvikamu zvedhijitari uye zvinhu zvinorasikirwa zvishoma (Rogers RO4000, LCP) zvezvikamu zveRF. Zvinhu zvekutanga zvinosarudza dielectric constant (Dk), dissipation factor (Df), uye coefficient of thermal expansion (CTE)—ma parameter matatu anodzora kuvimbika kwechiratidzo uye kuvimbika kwenguva refu kwejoini re solder. Kusawirirana kweCTE pakati pebhodhi nemapakeji eIC kunokonzera kuneta kwejoini re solder; kusarudza substrate CTE inoenderana nemapakeji eIC anotungamira inyaya yekuvimbika, kwete sarudzo.
Onawo: A Comprehensive Guide kune Smartphone PCBs — Muchidimbu webhurocha rakazara reHighleap Electronics reruzivo rwemabhodhi emafoni kubva kuchizvarwa chekutanga kusvika kumagadzirirwo eHDI ane layer gumi nemaviri aripo iye zvino.
Maumbirwo eLayer uye Kusarudzwa kweZvinhu

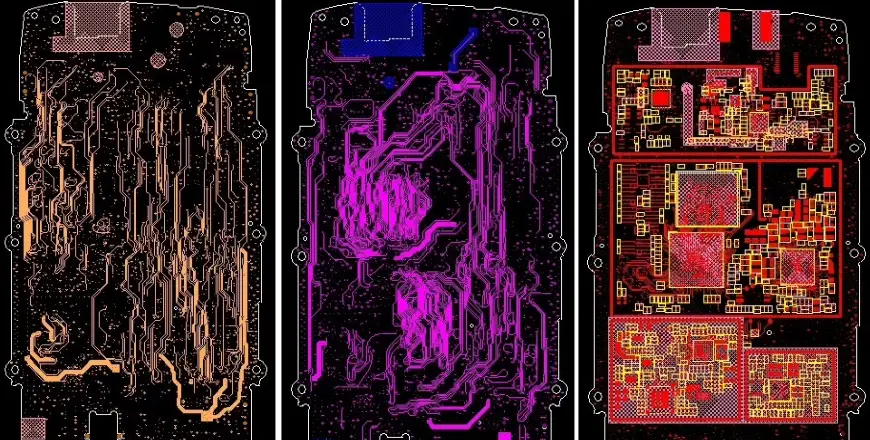

Stack-up inotsanangura denga remagetsi. Heino mashandisirwo anoitwa mhando dzema layer mubhodhi rekufambisa rine ma layer gumi:
| Rukoko Rudzi | Basa Rekutanga | Verenga | Chinodiwa Chinodiwa |
|---|---|---|---|
| Chiratidzo | Data rekumhanya-mhanya, RF, nzira yekudzora | 4-6 | Impedance inodzorwa ± 10% |
| Ndege yepasi | Kudzosera magetsi, EMI shielding | 2-4 | Mhangura yakasimba, maburi mashoma |
| Power Plane | Kugoverwa kwevoltage, kugadzikana kwePDN | 1-3 | Kuramba kwakaderera, kupatsanura kwakachena |
| RF/Antena | Ma antenna e5G/Wi-Fi, anoenderana | 1-2 | Zvinhu zvinorasikirwa zvishoma Dr ≤ 3.5 |
Standard FR4 ine Dr ≈ 4.2–4.8 pa1 GHz, asi kukosha uku kunochinja kuenda pa3.7–4.0 pa5 GHz. Chiratidzo chakagadzirirwa 50Ω pa1 GHz chinoverenga 54Ω pafrequency yekushanda—zvakakwana kuti zvikundikane kuyedza kutevedzera RF. Kune zvikamu zve5G mmWave (24–40 GHz), Highleap Electronics inotsanangura zvinhu zveRogers kana LCP zvine frequency-stable Drk values uye Df iri pasi pe0.003.
Zvikamu Zvikuru uye Logic Yekuisa
Kuiswa kwechikamu kunotevera mafambiro emagetsi, ekupisa, uye ekutumira masaini—kwete nyore. Mabhuroko makuru ekushanda uye zvipingamupinyi zvawo:
|
Mushandisi weMapurogiramu CPU · GPU · NPU |
Nzvimbo yepakati yekufambisa ndangariro pfupi. Kuisa PoP stacking kunobatanidza LPDDR5X zvakananga pamusoro peSoC, zvichideredza kureba kwetrace yekumhanya kwepamusoro pasi pe10mm uye kubvisa zvipingamupinyi zvekufambisa ngarava pa8,533 Mbps. |
|
RF Transceiver 5G · Wi-Fi 6E · Bluetooth |
Nzvimbo yeRF yakaparadzana ine kani yekudzivirira pasi. 50Ω inoenderana nematanho ekutumira kuenda kune zvinobatanidza antenna pasina kukanganiswa kwendege pasi penzira yeRF trace. |
|
PMIC Simba · Kuchaja · Kutevedzana |
Pedyo neSoC inopa marara asi akaparadzaniswa nekupisa. Inogadzira kupisa kwe0.8–1.5W pakurema kwakanyanya—kuisa kwacho kunosarudza kana kupisa kuchipararira kwese kwese kana kugadzira nzvimbo inopisa iri munzvimbo imwe chete inoderedza hupenyu hwechikamu. |
|
Flash + DRAM UFS 4.0 · LPDDR5X |
Mapeya akasiyana-siyana akaenzana nehurefu (±5 mil intra-pair). Pa8,533 Mbps, via yega yega, kusawirirana kwehurefu, uye kukanganiswa kweimpedance kunoderedza mwero wenguva uyo mudzori wememory asingakwanise kudzoreredza kuburikidza nekushandisa software optimization. |
Kufambisa kwechikamu cheRF kwemabhodhi ecircuit efoni kunotevera zvakafanana nezvinodiwa muHighleap's Kugadzira PCB Yakakwira Frequency maitiro—kusarudzwa kwezvinhu, hunyanzvi hwekutevera hunodzora, uye kusimbiswa kweimpedance kwakasimbiswa chinyorwa chisati chagadzirwa kekutanga.
Kushivirira Kwekugadzira Kunosarudza Goho
Kugadzirwa kwemafoni kunoshanda pamatanho akasiyana-siyana ayo anokonzera kutadza zvachose uko kugadzirwa kwemakambani ekugadzira kunongokonzera kurasikirwa kudiki kwegoho.
| Specification | kubvumidza | Kukundikana Kana Kukapfuura |
|---|---|---|
| Upamhi hweTrace (50Ω mitsetse) | ±15 μm | ±15μm inochinja impedance ≈3Ω — inokundikana RF certification threshold |
| Via Nzvimbo Yakarurama | ±25 μm | Kunyoresa zvisirizvo pa 0.1mm micro-vias kunobvisa mhete ye annular |
| Layer Registration | ±50 μm | Zvikamu zvemukati zvisina kurongeka zvinogadzira zvikanganiso zvekubatanidza capacitive |
| Impedans Control | ± 8% | Yakamanikana kupfuura IPC-2141; inodiwa pa5G neLPDDR5X |
| Solder Mask Clearance | ±25 μm | Kusakwana kwenzvimbo pa 0.3mm BGA pads kunokonzera mabhiriji anosvetukira pakudzoserwa kwemvura |
Ma micro-via eHDI akazadzwa ne electrolytic copper anofanira kunge asina chinhu. Ma voids e10–15% mu ma vias akazadzwa anoshanda senzvimbo dzekushushikana dzinotsemuka panguva yekupisa usati wasvika pakuguma kwebasa. Kuongororwa kweX-ray cross-section usati wagadzira zvakawanda ndiko kusimbiswa kweindasitiri—kuisiya ndicho chikonzero chinowanzo dzivirirwa chekukundikana kwekuvimbika kwe mobile board field.
Kugadzirwa uye Gungano Maitiro
KuHighleap Electronics, danho rega rega rekugadzira rinochengetedzwa nekutarisa usati watanga rinotevera:
|
1
|
Kudhirowa & Kutema Muchikamu Chemukati Kufungidzira zvakananga neLaser (LDI) kunoburitsa photoresist. Kucheka kunobvisa mhangura isingadiwe. Kuongorora kweAOI kunotevera kutenderera kwese kwekucheka—hakuna kushivirira kune mabhurugwa akavhurika kana mapfupi padanho iri. |
|
2
|
Nyoni Matanda emukati akarongwa ne prepreg pasi pekupisa nekumanikidzwa. Kunyoreswa kwematanda kwakasimbiswa ne X-ray coupon analysis usati waboorera—matanda asina kumira zvakanaka haagone kugadziriswa mushure mekuboorwa. |
|
3
|
Kuchera neLaser & Kugadzira Malaser eCO₂ neUV anoboora micro-vias pa 0.1mm. Achishandisa madziro emhangura-yakafukidzwa nesimbi kuburikidza nekuisa electrolytic isina magetsi, anozadzwa uye anorongwa kuti arongedzwe kuburikidza nezvivakwa. |
|
4
|
Surface Pedzisa Chikumbiro Masiki inosungirirwa, ENIG kana ENEPIG inoiswa pamusoro pemapedhi akavhurika. Kusarudzwa kwepedhi kunoenderana nekuti mapedhi akasanganiswa ewaya (ENEPIG) kana kuti assembly yakajairwa yesolder-only (ENIG) anodiwa here. |
|
5
|
Kuungana kweSMT & Kudzokazve Yakadhindwa nestencil nesolder paste, zvikamu zvinotorwa uye zvinoiswa ne automated systems, mapuranga anopfuura nemuovheni yeN₂ inodzokororwa. Mhepo ine nitrogen inodzivirira oxidation yepad ye 01005 ne 0201 fine-pitch passives. |
Highleap Electronics inotarisira zvese zviri zviviri Kugadzirwa kwePCB uye Pcb gungano mukati mekambani, zvichibvisa njodzi yekutambidzana pakati pevatengesi vakasiyana iyo inowanzo kukonzera kushamisika kwezvibereko padanho rekugadzira mabhodhi eHDI anofambiswa.
Kuedzwa Kwemhando Yepamusoro uye Maitiro eIPC
| Test Method | Zvarinoona | Standard |
|---|---|---|
| AOI (Otomatiki Optical) | Zvikamu zvisipo, mabhiriji, zvikanganiso zve polarity | IPC-7711/7721 |
| AXI (Otomatiki X-Ray) | BGA isina chinhu %, majoini akavanzwa, kuburikidza nehukuru hwekuzadza | IPC-A-610 |
| Kuongorora Kubhururuka / ICT | Inovhura, mapfupi, kukosha kwezvikamu, kuenderera mberi kwewebhu | IPC-9252 |
| Kuedzwa kweTDR Impedance | Kupindirana kwechokwadi vs. chinangwa pane zvisaririra zvinodzorwa | IPC-2141 |
| Kutenderera Kwekupisa | Kuneta kweSolder, kuburikidza ne delamination, CTE cracking | IPC-SM-785 |
Highleap Electronics inoshanda 100% kuongororwa kwemagetsi pamapaneru ese emafoni edunhu asati atumirwa, pamwe nekuyerwa kwekupisa kwemhepo pakugadzirwa kwega kwega kwedhizaini itsva.
Maitiro Ekusarudza Mugadziri weBhodhi reSekitori reFoni
Supplier Qualification Checklist
- Kugona kweHDI: 3+N+3 ELIC stack-ups ine micro-vias dzakazadzwa nemhangura dzakaunganidzwa pa 0.1mm drill
- Magwaro ekudzivirira: Data reTDR coupon uye kukosha chaiko kwakayerwa nechikamu chega chega chekugadzira
- Material traceability: Datasheet reLaminate, nhamba yenzvimbo, uye data reCTE rekutumira kwega kwega kwebhodhi
- Kurongeka kwemusangano: Kurongeka kwakasimbiswa kwekuiswa kwepasi pe01005 imperial passives
- Zvitemo: Magwaro ekutevedzera mitemo echikamu chechipiri cheISO 9001:2015; IPC-A-610
- Kuzvidavirira kwemunhu mumwe chete: Kugadzira nekugadzira pasi pedenga rimwe chete, kwete kupatsanurwa pakati pevatengesi
Highleap Electronics
Kugadzira Mabhodhi Edunhu Refoni — Muenzaniso weKugadzirwa Kwakawanda
Kugadzirwa kweHDI ine nhurikidzwa gumi nembiri, kuungana kweSMT otomatiki, uye bvunzo yemagetsi yakazara pasi pedenga rimwe chete. Kumbira mutengo pamwe chete nemafaira ako eGerber uye zvirevo zve stack-up.
Highleap Electronics ikambani yehunyanzvi yekugadzira maPCB uye kugadzira maPCB inoshandira maOEM emidziyo yefoni. Maitiro ebhodhi remaseti efoni anoratidza kugona kwekugadzira kwazvino kusvika muna 2026.
