4-in-1 ESC PCB Manufacturing and Assembly: 6-Layer 3 oz Copper Design Requirements
A 4-in-1 ESC is a practical example of a compact, high-current PCBA in which PCB construction and assembly quality directly affect manufacturability. Highleap Electronics supports customer projects with PCB fabrication, component sourcing and PCB assembly.
Why a 4-in-1 ESC design creates specific PCB manufacturing requirements

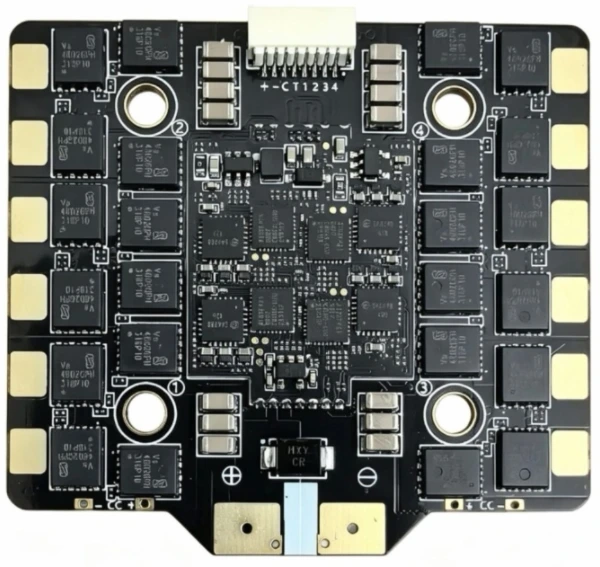

The supplied board is a useful manufacturing example because it combines a compact multilayer PCB, high-current copper construction, dense power devices, a controller and driver section, and board-edge electrical connections. These are the areas engineers and purchasing teams should consider when selecting a PCB and PCBA manufacturing partner.
What does the 100A 4-in-1 ESC reference tell a PCB manufacturer?
The supplied technical sheet identifies the electrical, mechanical and control requirements below. These details are useful at the quotation stage because they help a factory understand the PCB construction and PCBA scope before reviewing the complete Gerber, BOM and assembly files.
| Board type | AM32 4-in-1 ESC, 100A |
|---|---|
| Battery / input | 3–8S; maximum input voltage should follow the released electrical specification |
| Current | 100A continuous; 120A instantaneous |
| Main controller | AT32F421 |
| Driver IC | SA6288 |
| Firmware | AM32_V2.20 |
| Protocols | PWM, DSHOT150, DSHOT300, DSHOT600 |
| BEC | No BEC |
| Protection | TVS surge protection |
| PCB construction | 6-layer, 3 oz copper, stacked-layer design |
| Dimensions | 57.7 × 53.2 mm |
| Mounting holes | 30.5 × 30.5 mm spacing |
| Weight | 18.5 g |
Why does a 6-layer 3 oz copper PCB need a different manufacturing review?
The supplied board uses six layers and 3 oz copper. For a PCB factory, those are fabrication requirements rather than marketing features. The released stack-up, copper distribution, drill structure, clearances and registration must be reviewed together before production.
PCB fabrication focus
- Confirm the released six-layer stack-up rather than assuming a standard construction.
- Review the actual copper weight on each required layer.
- Check clearances, drill sizes, annular rings and copper distribution against the fabrication data.
- Review whether the board uses any special via, plating or thermal features.
Why this matters to the PCBA
- Large copper areas can change thermal behavior during soldering.
- Power components and small control components create different thermal masses.
- Board flatness, pad definition and surface finish influence assembly consistency.
- The final assembly process should follow the released PCB and component package data.
Layer registration
Multilayer registration matters because pads, vias and internal copper structures must remain aligned with the released design. A six-layer board should not be treated like a simple two-layer power board.
Copper and etching control
Thicker copper changes fabrication behavior. The manufacturing review should consider the customer's specified copper weight, feature geometry, copper distribution and dimensional requirements.
High-current PCB manufacturing
For higher-current designs, Highleap can review the customer's copper requirements and manufacturing data as part of the PCB fabrication quotation.
Related capability: Heavy Copper PCB Manufacturing
Do not infer missing stack-up data
A board photograph cannot define the complete internal stack-up. The final construction must come from the customer's released PCB data or approved engineering specification.
How should a high-current ESC PCBA be prepared for assembly?
The board combines large power components with a compact controller and driver section. For a PCB assembly factory, the important issue is not simply placing components; it is matching the BOM, footprints, stencil, placement data, soldering process and inspection criteria to the released design.
SMT placement
The BOM and centroid data should identify the correct part number, package, reference designator, orientation and placement coordinates.
Power-section soldering
Large copper areas and power devices can behave differently from small signal components during reflow. The assembly process should be developed around the actual board and component mix.
Connector assembly
Board-edge terminals and connectors require the correct mechanical drawings, polarity and soldering method. These details should be part of the assembly package.
Inspection coverage
AOI can verify many visible assembly conditions. X-ray may be appropriate where package construction creates hidden solder joints or where the customer's inspection criteria require it.
Why is the BOM just as important as the PCB file for ESC assembly?
A correct PCB can still produce the wrong PCBA if the component information is incomplete. The supplied reference names an AT32F421 controller, SA6288 driver and AM32_V2.20 firmware, but production requires the complete approved BOM and assembly data.
Manufacturer part numbers
Use exact approved manufacturer part numbers wherever electrical performance, package, timing or firmware compatibility matters.
Alternates
Requested substitutions should be reviewed rather than assumed equivalent simply because the footprint appears to fit.
Customer-supplied parts
If the customer supplies selected ICs, connectors or power components, identify them clearly in the BOM and purchasing instructions.
Turnkey sourcing
Highleap can also support BOM-based component procurement for projects where the factory is responsible for the complete PCBA material package.
What should a PCB assembly factory inspect on a dense power-control board?

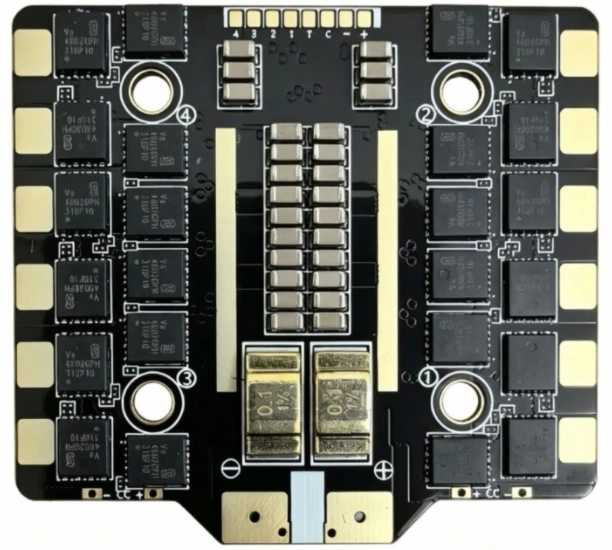

Inspection should be selected according to the package types, customer acceptance criteria and functional requirements. The board reference includes dense SMT components, power devices, connectors and a central controller section, so different checks serve different purposes.
From Gerber and BOM review to repeatable PCB and PCBA production
For an OEM or engineering customer, the manufacturing objective is repeatability. Highleap turns the customer's released design into a controlled PCB fabrication and PCB assembly process, from prototype quantities through production.
PCB fabrication only
If you already have the components and assembly source, Highleap can quote the bare PCB manufacturing portion.
PCB assembly only
If you already have the bare boards, Highleap can review the BOM and assembly files for PCBA manufacturing.
PCB + PCBA
For a single manufacturing workflow, the factory can coordinate PCB fabrication, component sourcing and assembly.
Mixed manufacturing scope
Prototype, pilot and production quantities can be quoted according to the actual engineering package and schedule.
What should you send to a PCB manufacturer for a 4-in-1 ESC project?
The fastest route to a useful quotation is to send the real project package. You do not need to rewrite your engineering documentation into marketing language first.
4-in-1 ESC PCB manufacturing and assembly questions
Can Highleap manufacture a 4-in-1 ESC PCB and PCBA?
No. Highleap Electronics manufactures PCBs and assembled PCBAs for customer designs. For a similar 4-in-1 ESC project, the manufacturing scope is determined from the released PCB files, BOM, assembly data and production requirements.
Can Highleap manufacture a PCB with 6 layers and 3 oz copper?
Highleap can review multilayer and higher-copper PCB requirements as part of a project quotation. The final manufacturability decision depends on the customer's released stack-up, copper distribution, feature geometry and fabrication requirements.
Can Highleap assemble high-current ESC boards?
Yes, Highleap provides PCB assembly services. For a specific ESC design, the assembly scope depends on the BOM, placement data, component packages, board construction, inspection requirements and test requirements.
What controller and driver are specified in this reference?
The supplied information identifies AT32F421 as the main controller and SA6288 as the driver IC, with AM32_V2.20 listed as the firmware name.
Which protocols are listed for this reference?
The supplied technical information lists PWM, DSHOT150, DSHOT300 and DSHOT600.
Does the board example include a BEC?
No. The supplied specification states that there is no BEC.
What is the best way to request a quote?
Send the PCB fabrication files, BOM, assembly data, quantity and target schedule. If programming or functional testing is required, include the relevant procedure or acceptance criteria.
Looking for a PCB manufacturer or PCB assembly factory for a high-current electronics project?
Use this 100A 4-in-1 ESC reference as a starting point, then send your own engineering files. Highleap can review the PCB fabrication, component sourcing, assembly, inspection and testing scope and provide a project-based quotation.
Technical values on this page are based on the supplied photographs and technical information. Final production requirements must be confirmed against the customer's released engineering files and approved BOM.
