High Volume PCB Assembly: A Comprehensive Guide by Highleap Electronic

In today’s fast-paced electronics industry, high volume PCB assembly plays a crucial role in ensuring mass production efficiency, cost-effectiveness, and product reliability. Whether you’re a startup scaling up production or an established business requiring consistent quality, choosing the right high volume PCB assembly partner is critical.

At Highleap Electronic, we specialize in delivering high-volume PCB assembly solutions that meet stringent industry standards. Our commitment to advanced manufacturing processes, strict quality control, and efficient turnaround times make us a trusted partner for businesses worldwide.

What Is High Volume PCB Assembly?

High volume PCB assembly refers to the large-scale production of PCBs, typically in batches of 10,000 units or more. It is essential for industries such as automotive, telecommunications, consumer electronics, industrial automation, and medical devices, where consistent quality and cost efficiency are key.

Key Benefits of High Volume PCB Assembly

1. Cost Efficiency – Bulk production significantly reduces the per-unit cost due to economies of scale.
2. Faster Time to Market – Automated assembly lines speed up the production process.
3. Consistency & Reliability – Standardized manufacturing ensures uniformity across all units.
4. Advanced Testing & Quality Control – Large-scale production includes rigorous inspection protocols to ensure defect-free PCBs.
5. Scalability – Ideal for companies transitioning from prototyping to full-scale production.

How to Choose a Reliable High Volume PCB Assembly Supplier

Selecting the right high-volume PCB assembly partner is crucial for maintaining product integrity. Here are some key factors to consider:

1. Manufacturing Capabilities

A top-tier PCB assembly service should offer:

• Surface Mount Technology (SMT) and Through-Hole Technology (THT)
• Multi-layer PCB manufacturing
• Advanced soldering techniques (Reflow, Wave, Selective Soldering, Vapor Phase)
• Lead-free and RoHS-compliant assembly
• Automated and manual PCB assembly options
• Capability for high-density, fine-pitch components (e.g., BGA, QFN, 0201, and 01005 packages)
• IC programming and conformal coating services
• Box build and system-level assembly for fully integrated solutions

2. Quality Assurance & Certifications

Ensure your supplier follows industry standards such as:

• IPC-A-610 (Electronic Assembly Acceptability)
• IPC-6012 (Qualification and Performance for Rigid PCBs)
• ISO 9001 (Quality Management System)
• ISO 14001 (Environmental Management System)
• ISO 13485 (Medical Device Standards, if applicable)
• IATF 16949 (Automotive Industry Quality Standards, if applicable)
• AS9100 (Aerospace and Defense Standards, if applicable)
• RoHS & REACH Compliance (Environmental Regulations for Europe & North America)
• UL Certification (Product Safety Standards, including UL 94 and UL 796 for PCBs)
• CE Marking (Mandatory for electronic products sold in the EU)
• FCC Compliance (For electronic devices emitting RF signals in the U.S.)
• WEEE Compliance (Waste Electrical and Electronic Equipment Directive for recyclability in Europe)

3. Testing & Inspection Methods

Reliable high-volume PCB assembly should incorporate:

• Automated Optical Inspection (AOI)
• X-ray Inspection (for hidden solder joints in BGA and QFN components)
• Solder Paste Inspection (SPI) to ensure accurate stencil printing
• In-Circuit Testing (ICT) for electrical performance verification
• Functional Testing (FCT) to confirm operational reliability
• Burn-in Testing (for high-reliability applications such as automotive and aerospace)
• Bed-of-Nails and Flying Probe Testing for large-scale and prototype testing
• Electromagnetic Compatibility (EMC) Testing to meet global standards
• Conformal Coating & Environmental Stress Testing for harsh environments

4. Turnaround Time & Supply Chain Management

Efficient supply chain management ensures:

• On-time delivery with flexible lead times for high-volume production
• Reliable component sourcing from authorized distributors (Digi-Key, Mouser, Arrow, Avnet, etc.)
• Full turnkey and partial turnkey options to suit your needs
• Material traceability for compliance with aerospace, medical, and automotive requirements
• Inventory management and just-in-time (JIT) supply chain solutions
• Secure packaging and logistics to prevent damage during transportation

Comprehensive High-Volume PCB Assembly Process at Highleap Electronic

At Highleap Electronic, we follow a systematic, high-precision PCB assembly process to ensure reliability, efficiency, and compliance with global industry standards. Our expertise in high-volume PCB manufacturing allows us to deliver cost-effective, high-quality assemblies for various industries, including automotive, medical, aerospace, industrial automation, and consumer electronics. Below is an in-depth look at our optimized high-volume PCB assembly workflow.

1. Design Review & DFM/DFT Analysis: Ensuring Manufacturability

Before mass production begins, we conduct a rigorous Design for Manufacturability (DFM) and Design for Testing (DFT) analysis to identify potential issues and optimize the PCB layout for assembly efficiency.

• DFM Optimization: Ensures component spacing, pad sizes, and via placement meet manufacturing requirements, reducing defects and improving yield.
• DFT Implementation: Integrates test points, bed-of-nails compatibility, and functional testing provisions to streamline quality control in mass production.
• Collaboration with Clients: Our engineers work closely with customers to refine PCB designs, ensuring smooth scaling from prototyping to full production.

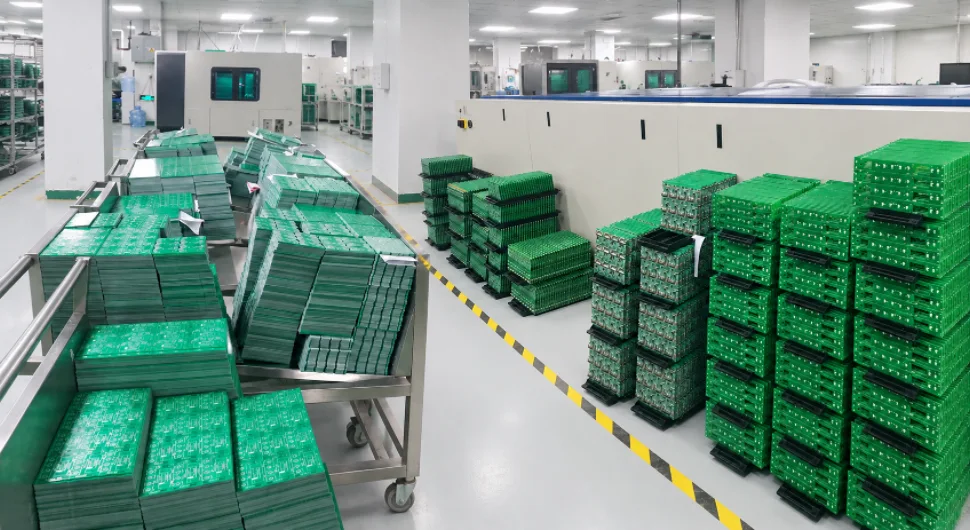

2. High-Precision PCB Fabrication: Advanced Materials & Surface Finishes

At Highleap Electronic, we specialize in high-precision PCB fabrication with multi-layer, HDI, rigid-flex, and metal-core PCBs to meet the diverse needs of industries such as automotive, aerospace, medical, and consumer electronics.

Our PCB manufacturing process involves advanced technologies to ensure high reliability, precise layer alignment, and superior electrical performance. If you are interested in a detailed breakdown of our PCB manufacturing techniques, including FR5 PCB production, negative electroplating processes, and HDI PCB manufacturing, visit the following resources:

🔗 FR5 PCB Manufacturing
🔗 Negative Electroplating Process
🔗 HDI PCB Manufacturing

For further inquiries, feel free to contact us anytime. We are committed to providing detailed information and expert support to ensure your PCB manufacturing requirements are met with the highest standards.

Material Selection for Optimal Performance

To guarantee mechanical stability, thermal resistance, and electrical performance, we use a variety of PCB materials:

• FR4 (Standard & High-Tg Laminates): The most commonly used material for high-performance PCBs.
• Rogers Materials: Ideal for RF/microwave applications requiring low signal loss and high-frequency stability.
• Polyimide Substrates: Best for flexible and rigid-flex PCBs, offering superior heat resistance and durability.
• Metal-Core PCBs (MCPCBs): Used in LED lighting, power electronics, and high-temperature applications for efficient heat dissipation.

Advanced Surface Finishes for Solderability & Longevity

We offer a range of PCB surface finishes to enhance solderability, corrosion resistance, and shelf life, ensuring compatibility with SMT, THT, and high-density components:

• ENIG (Electroless Nickel Immersion Gold): Ideal for fine-pitch BGAs, QFNs, and long shelf life applications.
• Lead-Free HASL (Hot Air Solder Leveling): A cost-effective and widely used RoHS-compliant surface finish.
• OSP (Organic Solderability Preservative): Provides a flat, oxidation-resistant finish suitable for high-speed SMT assembly.
• Immersion Silver/Tin: Ensures excellent conductivity and fine-pitch component compatibility, commonly used in high-speed and high-frequency circuits.

High-Volume Panelization for Maximum Efficiency

We optimize panel layouts for high-speed SMT pick-and-place machines and efficient depaneling to reduce production time and minimize material waste. This ensures cost-effective, high-yield PCB assembly in large-scale manufacturing.

For any additional questions, reach out to us anytime—we are here to provide detailed insights and customized PCB solutions to match your specific needs.

3. Component Procurement & BOM Validation: Securing Quality Components

We source components exclusively from authorized distributors like Digi-Key, Mouser, and Arrow, ensuring traceability and authenticity.

• BOM (Bill of Materials) Verification: We perform pre-assembly BOM scrubbing to resolve component availability issues and prevent last-minute delays.
• Supply Chain Security: We maintain backup supplier networks and approved vendor lists to ensure continuity in high-volume production.
• Counterfeit Prevention: All incoming components undergo extensive quality checks, including lot traceability, X-ray analysis, and functional verification.

4. PCB Assembly: Precision SMT & THT Integration

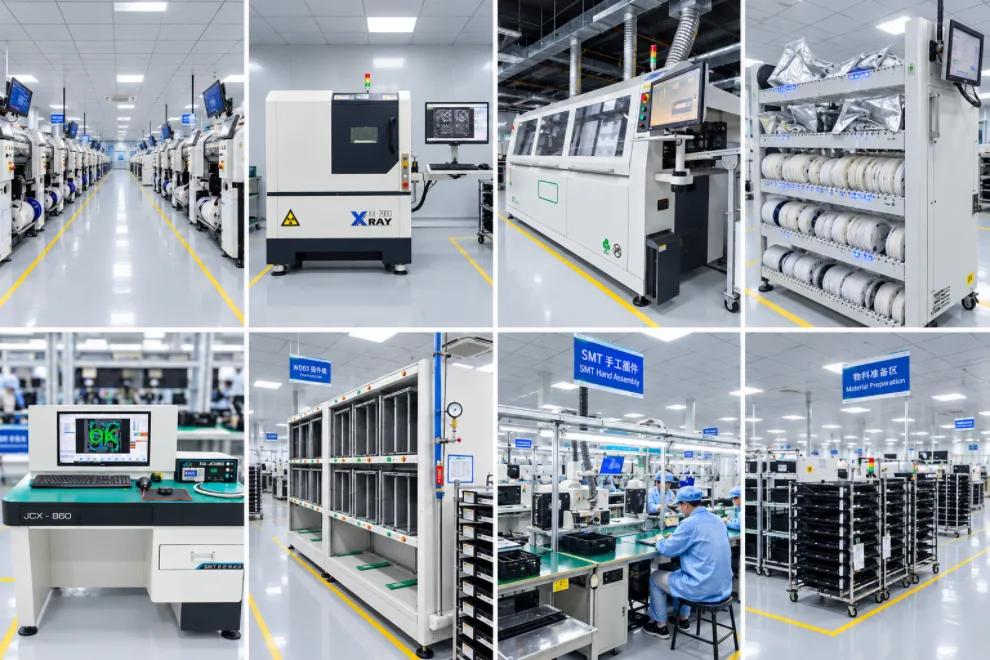

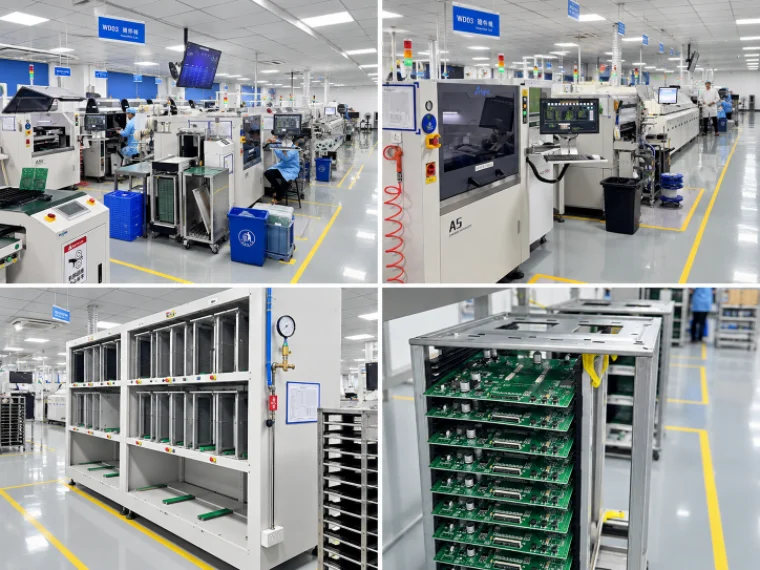

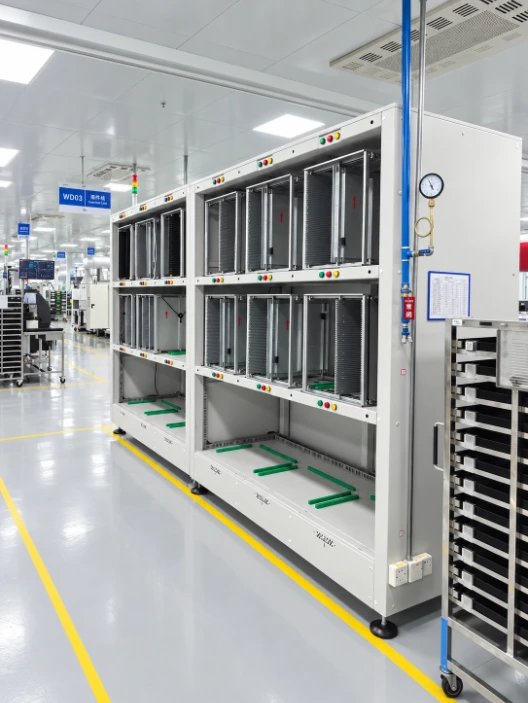

We utilize state-of-the-art automated assembly lines for rapid, high-precision PCB assembly.

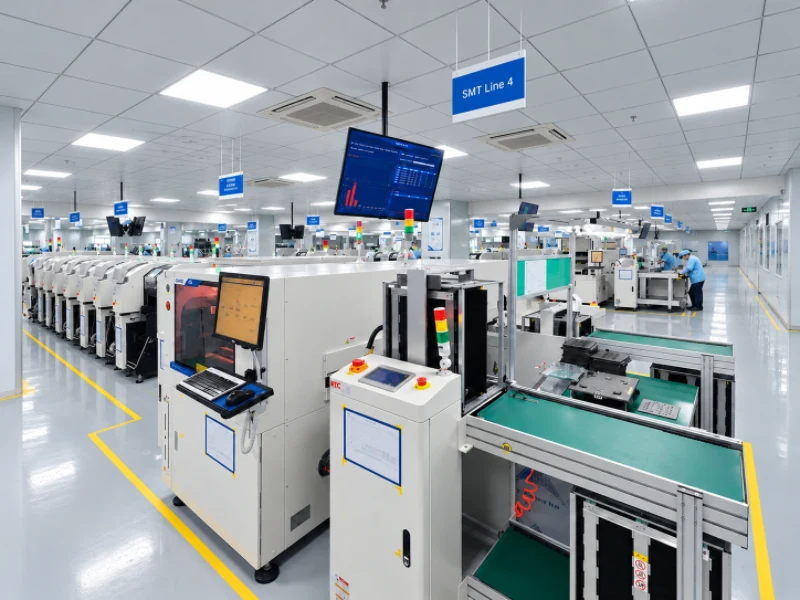

SMT (Surface Mount Technology) Assembly Process

1. Solder Paste Printing: Precision stencil printing ensures accurate solder paste deposition.
2. SPI (Solder Paste Inspection): Automated 3D inspection prevents solder defects before component placement.
3. High-Speed Pick-and-Place Machines: Position components at micron-level accuracy, supporting BGA, QFN, 0201, and 01005 packages.
4. Reflow Soldering: Our computer-controlled reflow ovens ensure optimal solder joint formation, preventing cold joints and warping.

THT (Through-Hole Technology) & Mixed-Technology Assembly

For components requiring mechanical strength, we use:

• Wave Soldering: Efficient for large batches of through-hole components.
• Selective Soldering: Ideal for mixed PCB designs with both SMT and THT elements.
• Automated Insertion & Press-Fit Assembly: Ensures fast and reliable pin alignment for high-reliability applications.

5. Rigorous Testing & Quality Control: Ensuring Zero Defects

We implement multi-stage testing and inspection to guarantee defect-free PCB assemblies.

Automated Optical & X-ray Inspection

• AOI (Automated Optical Inspection): Detects misplaced, misaligned, or missing components.
• X-ray Inspection: Ensures proper soldering for BGA, QFN, and hidden joints, identifying voids or shorts.

Electrical Testing & Functional Verification

• In-Circuit Testing (ICT): Uses a bed-of-nails fixture to check for electrical connectivity, component integrity, and proper solder joints.
• Functional Testing (FCT): Simulates real-world conditions, verifying the PCB’s operational performance before shipment.
• Burn-in Testing (for high-reliability applications): Identifies early-life failures by running the PCB under elevated stress conditions.

6. ESD-Safe Packaging & Logistics: Protecting Your PCBs

We follow strict ESD-safe handling and packaging protocols to prevent damage during transit.

• Anti-Static Shielding Bags & Moisture Barrier Packaging: Protects against electrostatic discharge and humidity exposure.
• Vacuum-Sealed Trays & Foam Inserts: Prevents physical damage during shipping.
• Barcoded Traceability & Custom Labeling: Every PCB is tracked with a unique serial number, allowing full production traceability.

We coordinate with global logistics partners to ensure on-time delivery with proper documentation for customs clearance.

Why Choose Highleap Electronic for High Volume PCB Assembly?

✅ Extensive Manufacturing Capabilities

• • Full turnkey PCB assembly solutions
  • Prototype-to-mass production scalability
  • Lead-free and RoHS-compliant options

✅ Uncompromising Quality Control

• • IPC-certified engineers
  • 100% inspection and testing
  • Strict adherence to international standards

✅ Competitive Pricing & On-Time Delivery

• • Cost-effective bulk production
  • Flexible lead times
  • Global shipping capabilities

✅ Custom PCB Assembly Solutions

• • High-mix, low-volume to full-scale production
  • Rigid, flex, and hybrid PCBs
  • Support for custom PCB designs and layouts

Conclusion

High volume PCB assembly is a key enabler for industries requiring mass production with high quality and efficiency. Choosing the right partner ensures seamless production, reduced costs, and faster time to market.

At Highleap Electronic, we bring decades of expertise in PCB manufacturing and assembly, offering end-to-end solutions tailored to your business needs. Whether you need prototyping, mid-range production, or full-scale high-volume assembly, our team is ready to deliver the best results.

Contact us today to discuss your high-volume PCB assembly needs and experience the Highleap difference!
