FR4 PCB Manufacturer | High-Quality Manufacturing & Assembly Services

When selecting an FR4 PCB manufacturer, understanding both material capabilities and manufacturing expertise becomes critical for project success. Highleap Electronic delivers comprehensive FR4 PCB manufacturing and assembly services, combining advanced production capabilities with proven industry experience across automotive, medical, telecommunications, and consumer electronics sectors.

FR4 PCB Manufacturing Capabilities of Highleap Electronics

Production Specifications and Technical Capabilities

FR4 Material Grades and Applications

1. Standard FR4: Cost-effective solution for general-purpose electronics with Tg values of 130-140°C, suitable for consumer electronics and basic industrial applications.
2. High-Tg FR4: Enhanced thermal stability with Tg values of 150-180°C, designed for automotive electronics, power management systems, and applications requiring extended temperature performance.
3. Halogen-Free FR4: RoHS-compliant materials meeting environmental regulations, ideal for medical devices, aerospace applications, and eco-conscious product development.

FR4 PCB Manufacturing Process

Streamlined Production Workflow

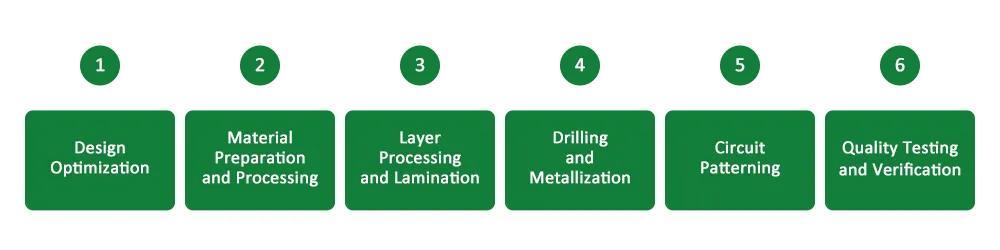

Our FR4 PCB manufacturing process combines precision engineering with rigorous quality control at each stage:

1. Design Optimization: Design for Manufacturing (DFM) analysis ensures optimal manufacturability while minimizing costs and production time.
2. Material Preparation and Processing: Precision cutting and preparation of FR4 substrates with careful attention to material orientation and stress relief.
3. Layer Processing and Lamination: Advanced multilayer lamination under controlled pressure and temperature conditions, ensuring proper adhesion and dimensional stability.
4. Drilling and Metallization: High-precision drilling followed by through-hole and via plating to establish reliable interlayer connections.
5. Circuit Patterning: Photolithographic processing and etching to create precise trace geometries and pad configurations.
6. Quality Testing and Verification: Comprehensive electrical testing, including continuity, insulation resistance, and impedance verification.

Delivery Performance and Capacity

1. Standard Lead Times:

• Prototype quantities (1-10 pieces): 5-7 business days
• Small batch production (50-500 pieces): 7-10 business days
• Volume production (1000+ pieces): 12-15 business days
• Express service available for urgent requirements

2. Production Capacity: Monthly capacity exceeding 100,000 square meters with scalable production scheduling to accommodate both prototype and high-volume requirements.

FR4 vs. Alternative PCB Materials Comparison

When to Choose FR4 PCB Manufacturing

FR4 remains the optimal choice for applications requiring balanced performance, cost-effectiveness, and manufacturing flexibility. Consider FR4 for projects involving consumer electronics, industrial controls, automotive systems, medical devices, and telecommunications equipment where specialized high-frequency or thermal management requirements do not justify premium material costs.

Complete PCB Assembly Services

Surface Mount Technology (SMT) Assembly

Advanced SMT capabilities supporting component packages from 01005 chip components to large BGAs with pitch accuracy of ±0.025mm. High-speed placement equipment ensures efficient assembly of complex, high-density designs with placement rates exceeding 80,000 components per hour.

Through-Hole Technology (THT) Assembly

Reliable through-hole assembly services for applications requiring robust mechanical connections and higher power handling capabilities. Wave soldering and selective soldering processes ensure consistent joint quality for both standard and odd-form components.

Mixed Technology Assembly

Comprehensive assembly solutions combining SMT and THT technologies on single PCB designs, optimizing component selection and placement for performance, cost, and reliability requirements.

Testing and Quality Assurance

1. Automated Optical Inspection (AOI): 100% inspection coverage detecting component placement accuracy, solder joint quality, and surface defects.
2. In-Circuit Testing (ICT): Electrical verification of component values, connections, and basic functionality using custom test fixtures.
3. Functional Testing: Application-specific testing protocols ensuring assembled PCBs meet operational requirements under specified conditions.
4. X-Ray Inspection: Hidden solder joint analysis for BGA components and other critical connections requiring subsurface verification.

Industry Certifications and Quality Standards

Highleap Electronic maintains comprehensive quality certifications ensuring compliance with industry standards:

• ISO 9001:2015 – Quality management systems
• ISO 13485:2016 – Medical device quality management
• IATF 16949:2016 – Automotive quality management
• RoHS Compliance – Environmental and material safety
• UL Recognition – Safety and performance standards

These certifications demonstrate our commitment to consistent quality across automotive, medical, aerospace, and consumer electronics applications.

Custom Enclosure Solutions and Product Integration

Beyond PCB manufacturing and assembly, we provide complete product development support including custom enclosure design and manufacturing. CNC machining and injection molding capabilities enable seamless integration of assembled PCBs into finished products, reducing supply chain complexity and accelerating time-to-market.

Pricing Structure and Cost Optimization

FR4 PCB manufacturing costs depend on several key factors:

1. Design Complexity: Layer count, trace density, and special features influence manufacturing complexity and pricing.
2. Volume Requirements: Economies of scale provide significant cost advantages for larger production quantities.
3. Material Specifications: Standard FR4 grades offer optimal cost-performance balance, while specialized materials command premium pricing.
4. Delivery Requirements: Standard lead times provide best pricing, while expedited delivery involves additional costs.

Our engineering team provides Design for Manufacturing guidance to optimize designs for cost-effectiveness without compromising performance or reliability.

Technical Support and Customer Service

Dedicated engineering support throughout the entire project lifecycle, from initial design consultation through production and testing. Technical expertise includes impedance control design, thermal management optimization, and material selection guidance tailored to specific application requirements.

Getting Started with Your FR4 PCB Project

Step 1: Request Technical Consultation – Schedule discussion with our engineering team to review project requirements and design specifications.
Step 2: Receive Detailed Quotation – Comprehensive pricing including manufacturing, assembly, testing, and delivery timeline.
Step 3: Design Review and Optimization – DFM analysis and recommendations to optimize manufacturability and cost-effectiveness.
Step 4: Prototype Development – Initial prototype production for design verification and testing.
Step 5: Production Planning – Scalable manufacturing plan supporting prototype through high-volume production requirements.

Ready to discuss your FR4 PCB manufacturing requirements? Contact our engineering team today for technical consultation and detailed project quotation. Our expertise in FR4 PCB manufacturing, assembly, and testing ensures your project success from prototype through production.

FAQ

1. What minimum order quantities do you require for FR4 PCB manufacturing?

We accommodate orders from single prototypes to high-volume production without minimum order quantity restrictions, providing flexibility for various project stages.

2. Can you manufacture FR4 PCBs with controlled impedance requirements?

Yes, we provide controlled impedance manufacturing with typical tolerance of ±10% for both single-ended and differential pair configurations.

3. Do you offer design review services before manufacturing?

Our engineering team provides comprehensive DFM review at no additional cost, identifying potential manufacturing issues and cost optimization opportunities.

4. What testing and inspection services are included?

Standard manufacturing includes electrical testing, visual inspection, and dimensional verification. Additional testing services such as AOI, ICT, and functional testing are available based on project requirements.

5. How do you ensure quality consistency across production batches?

Statistical process control and comprehensive documentation ensure consistent quality across all production batches, with full traceability and quality records maintained.
