PCB Assembly Lead Time Guide for Faster Delivery

PCB assembly lead time is not only component placement. It also includes component sourcing, engineering review, kitting, inspection, testing, and when required the PCB fabrication timeline. Understanding how these steps connect helps you plan builds accurately and speed up delivery without sacrificing quality.

At Highleap Electronics, we operate as a PCB fabrication and PCB assembly factory. That means we can coordinate PCB manufacturing and PCBA under one production system when customers need a complete build. This guide explains what drives PCB assembly lead time and how to optimize your project schedule.

---

1 PCB Assembly Lead Time Overview

PCB assembly lead time includes the full set of activities required to ship finished assembled boards. Depending on your project, it may include PCB fabrication as well, especially when you want a single factory to control both PCB manufacturing and assembly for better schedule predictability.

1.1 Phases Included In PCB Assembly Lead Time

Pre Production

• Order processing and engineering review
• Component sourcing for turnkey builds
• PCB fabrication when boards are not customer supplied
• Stencil fabrication

Assembly

• SMT setup and placement
• Reflow soldering
• Through hole processing when applicable
• Inspection and touchup

Post Assembly

• Testing AOI ICT functional
• Conformal coating when applicable
• Final inspection
• Packaging and shipment

1.2 Typical Total Lead Times

Prototype turnkey 2 to 3 weeks total

• Components 5 to 10 days if in stock
• PCB fabrication can run in parallel when needed
• Assembly 3 to 5 days

Production turnkey 3 to 5 weeks total

• Components 1 to 4 weeks depending on availability
• PCB fabrication can run in parallel when planned early
• Assembly 5 to 10 days

Consignment assembly only 1 to 2 weeks

• Kitting and verification 1 to 2 days
• Assembly 3 to 7 days
• Testing 2 to 3 days

1.3 Critical Path Planning

In many builds the real bottleneck is components or PCB fabrication not SMT line time. A realistic plan identifies what actually gates shipment before paying for any expedite options.

---

2 Component Sourcing Often Determines The Schedule

For turnkey PCBA, component sourcing frequently sets the project pace. Even when PCB fabrication and assembly are fast, one constrained IC can push delivery out by weeks.

2.1 Lead Time Categories

Stock items immediate to 2 weeks

• Common passives resistors capacitors inductors
• Standard discretes diodes transistors
• Popular connectors and mainstream ICs

Standard lead time 2 to 8 weeks

• Less common active components
• Specific package variants
• Higher value ICs

Extended lead time 8 to 26 plus weeks

• Specialty components
• Constrained parts during shortages
• Automotive industrial grade parts
• Custom or semi custom devices

2.2 Why Sourcing Slows Down

• Market conditions shortages extend lead times dramatically
• Quantity large builds may need factory allocation
• Specifications temperature grade packaging and approved alternates
• Distributor stock authorized stock ships fast while special orders take time

2.3 Practical Ways To Reduce Sourcing Risk

• BOM scrub early identify long lead items before schedule lock
• Approve alternatives enable second source substitutions when needed
• Pre order critical parts start procurement before final design freeze when possible
• Build safety stock for repeat production programs to prevent delays

3 Assembly Production Timeline From Setup To Completion

Once boards and parts are ready, the assembly cycle is usually predictable. The main variables are setup changeovers, mixed technology content, and any special processes that introduce cure time.

3.1 SMT Setup And Run Time

Setup 0.5 to 1 day per design

• Program verification and optimization
• Feeder loading and verification
• Stencil alignment
• First piece inspection

Production rates

• Placement speed 10,000 to 60,000 CPH depending on equipment
• Typical board 1 to 3 minutes machine time
• Throughput often limited by reflow capacity and batching

3.2 Through Hole Processing Timeline

If your build includes THT parts

• Manual insertion about 50 to 200 components per hour per operator
• Wave selective solder about 2 to 5 minutes per board
• Inspection and touchup varies with complexity

THT commonly adds 0.5 to 2 days depending on volume and design.

3.3 Special Processes That Add Days

• Underfill 0.5 to 1 day including cure time
• Conformal coating 0.5 to 1 day
• Potting 1 to 2 days including cure time
• Mechanical assembly variable

Get Assembly Timeline

---

4 Testing And Quality Control Time Requirements

Testing and quality assurance protect reliability, but they also require time and capacity. The right test strategy keeps quality high without becoming the bottleneck.

4.1 Inspection Steps

• AOI inline inspection with minimal added time
• Visual inspection 2 to 10 minutes per board
• X ray 5 to 15 minutes per board for BGA QFN sampling

4.2 Electrical And Functional Testing

• ICT 30 seconds to 3 minutes per board
• Flying probe 3 to 15 minutes per board
• Functional test variable from minutes to hours

4.3 Test Development And Schedule Impact

Prototype quantities rarely hit throughput limits, but production volumes must align test capacity with SMT output. For new products, functional test development can require 1 to 2 weeks and should be planned in advance.

---

5 Turnkey And Consignment Timelines And How To Accelerate

Your delivery speed depends on whether the build includes sourcing and PCB fabrication within one factory schedule or whether you supply materials yourself. The best approach depends on urgency, BOM risk, and how much control you need.

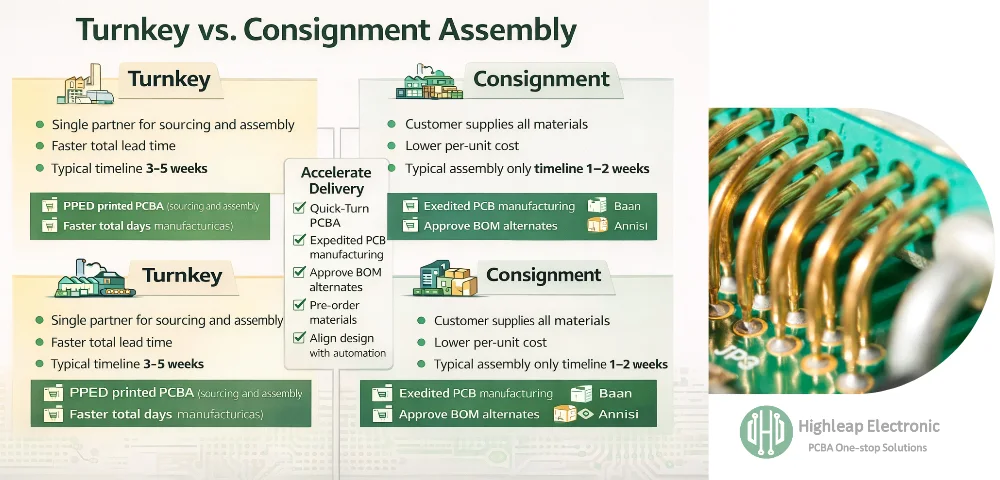

5.1 Turnkey And Consignment Timeline Comparison

Turnkey

• Factory manages component sourcing and schedule coordination
• Typical total timeline 2 to 5 weeks depending on component availability

Consignment

• Customer supplies all materials and the factory focuses on assembly and test
• Typical assembly only timeline 1 to 2 weeks assuming a complete kit

5.2 Quick Turn Options That Actually Move The Ship Date

Quick turn PCBA compresses schedules through priority scheduling, expedited sourcing at premium, overtime processing, and shorter internal queues. Simple builds often fit 5 to 7 days while complex builds often fit 7 to 10 days when materials are ready.

For urgent full builds that include boards, expedited PCB manufacturing can be combined with quick turn assembly to reduce total time when the BOM is available.

5.3 Design And Data Choices That Improve Speed Without Quality Risk

• Use common components reduce long lead procurement risk
• Reduce unique part count faster kitting and fewer shortages
• Design for automation less manual soldering and rework
• Approve alternates enable faster sourcing decisions
• Submit complete data avoid engineering delays
• Respond quickly keep production moving during questions

5.4 Align Lead Time With Quantity And Budget

For quantity planning, review PCB MOQ and low MOQ PCB assembly options. For budgeting decisions around expedite choices, understanding PCB assembly cost helps balance schedule goals with total project spend.
