PCB Solder Mask Color Selection Tips for Better Performance

At Highleap Electronics, we understand that choosing the right PCB solder mask color goes beyond aesthetics—it affects functionality, inspection, branding, and cost. This guide will help you navigate the colorful world of PCB solder masks and make informed decisions for your projects. Customize your PCB solder mask color – green, black, white, yellow, purple, or any custom shade. Get expert support and quick turnaround at Highleap Electronics.

Table of Contents

1. What is PCB Solder Mask?
2. Standard PCB Solder Mask Colors and Their Applications
3. Custom Color Considerations
4. Selection Criteria: How to Choose the Right Color
5. Best Practices and Recommendations
6. Quality Assurance at Highleap Electronics
7. Future Trends in PCB Solder Mask
8. Conclusion

---

What is PCB Solder Mask?

The solder mask, also known as solder resist or solder stop mask, is a thin polymer layer applied to the copper traces of a PCB. Its primary function is to prevent solder bridges from forming between closely spaced solder pads during the assembly process. Beyond protection, the solder mask color has become an important consideration in modern PCB design, influencing functionality, aesthetics, and branding.

Common PCB solder mask colors include:

• Green
• Black
• Matte Black
• Blue
• Light Blue
• White
• Yellow
• Purple
• Gray
• Red
• Orange
• Pink
• Clear/Transparent

Custom Solder Mask Colors

At Highleap Electronics, we offer custom solder mask colors to suit your specific needs. However, there are important considerations to keep in mind:

• Equipment and Setup Changes: Custom colors often require adjustments to the equipment, including changing inks and cleaning equipment. These setup changes may affect lead times and costs.
• Higher Costs: Custom colors typically come with an additional cost, especially for smaller batches or prototypes. The cost for custom colors can range from 15% to 30% higher than standard colors.
• MOQ and Lead Times: Custom colors may have a minimum order quantity (MOQ) requirement and could add several days to the production timeline, as setup and color matching may take extra time.

While standard colors such as green, blue, and black are commonly used and offer quicker turnaround times, customized colors, such as red, yellow, or purple, provide an opportunity for unique branding and design. However, keep in mind that more specialized colors may have minor technical limitations, such as color consistency across batches and slight variations in solder mask thickness. If you need custom PCB solder mask colors, please contact us.

Standard PCB Solder Mask Colors and Their Applications

Green – The Industry Standard

Green is the most widely used color for PCB solder masks, accounting for around 75% of all manufactured PCBs. This popularity is due to several practical advantages:

• Optimal contrast for automated optical inspection (AOI)
• Least eye strain during manual inspection
• Mature manufacturing process with the lowest cost
• Best resolution for fine-pitch components

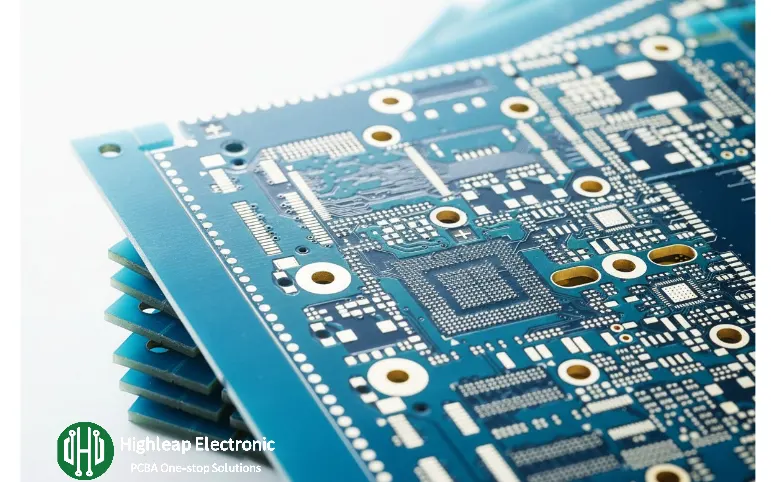

Blue Solder Mask

Blue PCBs provide a modern, professional appearance and are favored for their excellent contrast with gold-plated pads. Other key advantages include:

• Good contrast with gold-plated pads
• Popular in LCD and LED applications
• Slightly better heat dissipation compared to green
• Preferred for Arduino and development boards

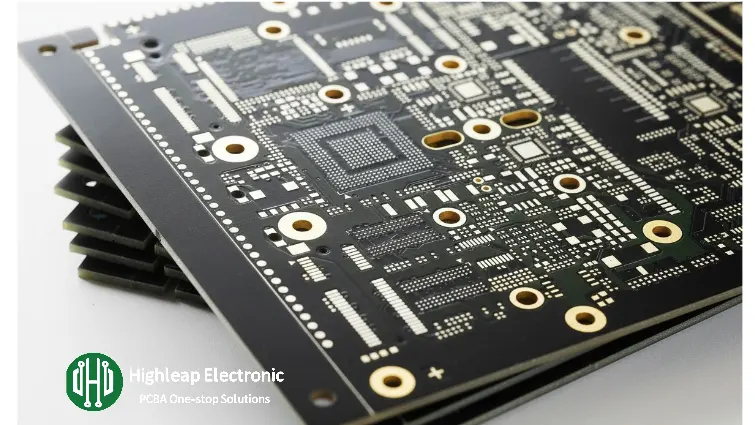

Black Solder Mask

Black PCBs exude a premium, high-end quality and are commonly found in:

• High-end consumer electronics
• Apple products and premium smartphones
• Gaming hardware and graphics cards
• Challenges: Difficult inspection, higher heat absorption, requires experienced assembly technicians

White Solder Mask

White solder masks are increasingly used in LED lighting applications due to their reflective properties, offering:

• Maximum light reflection for LED applications
• Clean, minimalist aesthetic
• Great for art installations and display products
• Note: Easily shows contamination and requires careful handling

Yellow Solder Mask

Yellow solder masks offer high visibility and unique branding opportunities. Their features include:

• Exceptional contrast with black silkscreen
• Easy visual inspection
• Popular in industrial control systems
• Distinctive appearance for brand differentiation

Purple Solder Mask

Purple PCBs combine uniqueness with functionality and are excellent for:

• Branded products
• Good contrast properties
• Popular in maker communities
• Suitable for prototyping and special editions

Gray Solder Mask

Gray provides a professional, neutral appearance and is a great choice for:

• Reducing glare during inspection
• Creating a professional industrial look
• Medical and measurement equipment
• Balancing aesthetics with functionality

Custom Color Considerations

At Highleap Electronics, we offer custom solder mask colors to meet specific branding or functional requirements. However, there are important factors to consider:

Cost Implications

• Prototype/Small Batch: Custom colors typically add 15-30% to base cost
• Setup Fees: Initial color matching requires $500-$1,500 setup fee
• MOQ Requirements: Most custom colors require minimum 10-20 panels
• Lead Time: Add 3-5 days for color development and approval

Technical Limitations

• Color consistency across batches may vary ±10%
• Some colors affect solder mask thickness and coverage
• Extreme colors may impact AOI inspection efficiency
• UV stability varies by pigment type

Selection Criteria: How to Choose the Right Color

1. Functional Requirements

• Inspection needs: Green and blue offer best contrast
• Heat management: Light colors reflect heat, dark colors absorb
• Light reflection: White and yellow for LED applications
• EMI considerations: Some colors contain metal particles affecting shielding

2. Application Environment

• Consumer electronics: Black, white, blue for aesthetics
• Industrial: Green, yellow for reliability and inspection
• Medical: White, gray for cleanliness perception
• Automotive: Red, black for brand alignment

3. Cost Optimization

• Green: Lowest cost, fastest delivery
• Blue, Black, White: 5-10% premium
• Red, Yellow: 10-15% premium
• Custom colors: 15-30% premium plus setup

4. Production Volume

• Prototypes: Stick to standard colors unless branding critical
• Small production: Consider popular alternatives (blue, black, white)
• Mass production: Custom colors become cost-effective above 1,000 units

Best Practices and Recommendations

1. For First-Time Designers: Start with green for prototypes, experiment with colors in production
2. For Cost-Sensitive Projects: Green remains unbeatable for price/performance
3. For Premium Products: Black or white creates perceived value
4. For Technical Applications: Choose based on inspection and thermal requirements
5. For Branded Products: Invest in custom colors only at scale

Quality Assurance at Highleap Electronics

Regardless of color choice, our quality standards remain consistent:

• IPC-SM-840 Class 3 compliance
• Uniform thickness: 0.8-1.2 mil (20-30 μm)
• Complete coverage with defined openings
• Cross-hatch adhesion test >4B
• Thermal shock resistance: 288°C for 10 seconds

Future Trends in PCB Solder Mask

The industry is evolving with new developments:

• Photoimageable solder masks: Better resolution for HDI boards
• Flexible color-changing masks: Temperature-sensitive applications
• Environmentally friendly options: Halogen-free, bio-based polymers
• Functional coatings: Antimicrobial, self-healing properties

Conclusion

Choosing the right PCB solder mask color is not just about appearance — it can impact inspection accuracy, heat management, and even long-term reliability. While green remains the most cost-effective and widely adopted option, alternative and custom colors allow designers to create a distinct identity and improve usability for specialized applications.

At Highleap Electronics, we don’t just supply PCBs — we support you through the entire process, from selecting the right laminate material to manufacturing and final assembly. Our PCB assembly services and complete electronic manufacturing solutions ensure your boards meet the highest quality standards and production requirements.

Whether you’re prototyping a new design or preparing for high-volume production, our engineering team can help you select the optimal solder mask color, streamline your stack-up design, and deliver boards that perform reliably in real-world conditions. If you need custom PCB solder mask colors or full manufacturing support, contact us today to discuss your project.
