Itemized PLC PCB Quote Guide and PCBA Cost Drivers

Getting an accurate PLC PCB quote is harder than getting a fast one. Most factories can return a number within 24 hours if you send a Gerber file and a quantity — but that number frequently bears little relationship to the final invoice. The variables that actually drive PLC PCB cost are not fully captured in a bare board Gerber file: layer count, laminate material, IPC inspection class, controlled-impedance requirements, copper weight, surface finish, component BOM, assembly complexity, conformal coating, and functional testing scope all affect the price significantly.

At Highleap Electronics, we return detailed, line-item-broken PLC PCB quotes that give you a real cost basis and let you understand exactly what changes if your specifications change. The goal is not the fastest quote — it is the most accurate one, delivered within a defined timeline with every assumption documented.

Why PLC PCB Quotes Vary So Much Between Suppliers

A 40–60% price variation between supplier quotes for the same PLC PCB is not unusual, and it is rarely random. It almost always reflects unstated specification differences or actual capability differences — and distinguishing between them is the key to evaluating quotes usefully.

The most common source is unstated specification differences. A factory pricing a PLC PCB quote without specifying IPC class may be pricing to Class 1 while you assume Class 2 or Class 3 — a 15–30% cost difference. A factory quoting “ENIG” without specifying nickel and gold deposit thickness may be pricing a minimal specification that doesn’t meet the durability requirements of your application. A factory including “controlled impedance” without coupon-based TDR measurement is controlling impedance nominally through process settings rather than verifying the achieved value against your specification.

Bare Board vs. Turnkey PCBA Quotes: What Each Covers

The scope difference between a bare board fabrication quote and a turnkey PCBA quote is substantial, and the two should not be compared directly on a per-board basis without understanding what each includes. For industrial PLC boards, requesting the PCBA quote with itemized line items gives you the visibility to evaluate which specification changes affect which cost elements.

The 7 Variables That Determine Your PLC PCB Price

PLC PCB pricing has a definable structure once you understand each cost driver. These are the seven variables that move the price most significantly, in order of typical impact.

What to Submit for an Accurate Quote

A Gerber file and a quantity gives a factory enough to return a number. It does not give them enough to return an accurate number. Here is what a complete quote package should include:

• Design & Assembly Files: Gerber RS-274X/X2 or ODB++. For PCBA, include BOM (Excel/CSV) and Pick & Place (Centroid) file.
• Stack-up Specification: Layer count, laminate Tg, copper weight by layer (e.g., 3oz inner / 1oz outer), and finished board thickness.
• Surface Finish & IPC: Specify IPC-A-610 Class 2 or 3 explicitly. Specify surface finish deposit thickness (e.g., ENIG per IPC-4552).
• Impedance & Testing: Target impedance with tolerance (±10%). Scope for 3D X-ray, functional test, or conformal coating.

Where You Can Reduce PLC PCB Cost Without Compromising Reliability

Cost reduction on an industrial PLC PCB is a precision exercise — there are specification elements where cost can be reduced safely, and elements where cost reduction directly trades against reliability. Here is how to optimize effectively:

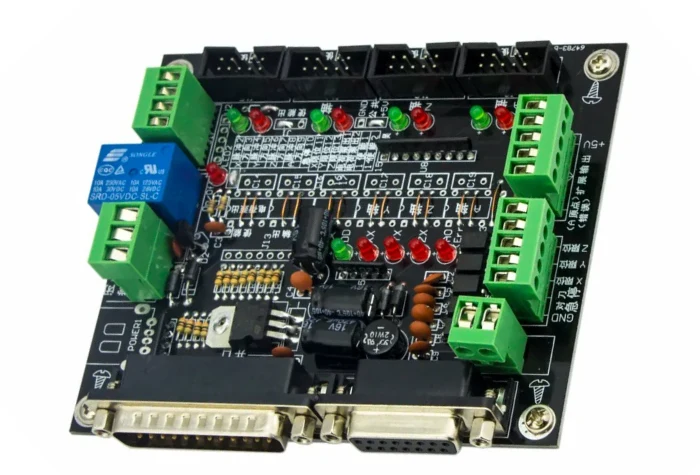

Optimize layer count: The biggest cost lever on bare board fabrication is layer count. A 10-layer board that could route correctly at 8 layers with better component placement represents meaningful cost saving. We review routing density during DFM to flag over-specified layer counts.

Specify heavy copper only where needed: For PLC boards where only the power distribution layers require heavy copper, specifying a mixed copper weight stack-up (e.g., 3 oz on inner power layers, 1 oz on signal layers) optimizes costs compared to a uniform heavy copper specification across all layers.

Optimize panel utilization: Panel yield — how many boards tile onto a standard production panel — has a major effect on unit cost. We advise on panel utilization and can suggest minor outline adjustments (e.g., 2–3mm) that substantially improve yield and lower costs.
