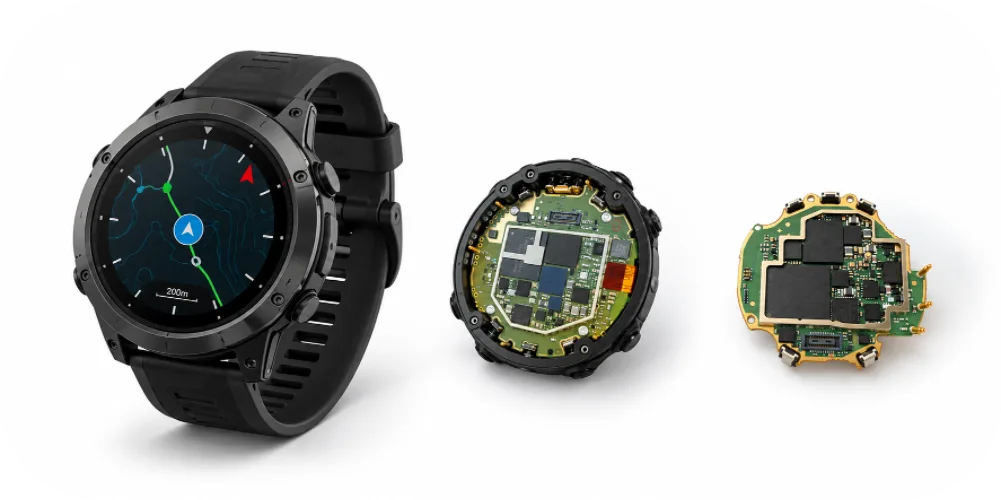

GPS Sports Watch PCB Design: GNSS, RF, Sensors and PCBA Manufacturing

Turning a compact GPS sports watch controller from an approved prototype into a repeatable production build requires more than accurate component placement. GNSS-sensitive parts, small sensor packages, charging circuits and board-to-board connections must all be manufactured to the same released specifications. The challenge for an OEM is to find a PCB supplier that can handle the board construction and assembly requirements without losing control of critical parts or revisions.

Highleap Electronics provides PCB fabrication and PCB assembly for OEM electronic products across a wide range of industries. Our services cover bare circuit boards, component procurement, SMT and through-hole assembly, inspection, and project-specific testing. For a GPS sports watch PCB project, we review the customer’s board data, BOM, mechanical constraints and production quantities to establish the appropriate PCB or PCBA manufacturing process.

Start with the Actual PCB Assembly, Not a Generic Watch Specification

Two watches with GPS tracking can require very different boards. One design may integrate the GNSS receiver, processor, BLE circuitry, power management and motion sensors on a compact rigid PCB. Another may use separate flexible circuits for the display, antenna, charging contacts or optical sensor. The OEM’s layout and enclosure determine the arrangement; there is no standard layer count, material or PCB stack-up for every GPS watch.

Define each item in the manufacturing order

A bare-board order specifies the fabricated PCB. A PCBA order adds the approved electronic components and their assembly. Where a product uses several boards, the quotation should identify each revision and quantity separately, including any flex circuits, special connectors or customer-supplied parts.

It is also useful to provide an enclosure drawing or mechanical datums for connector height, board outline and sensor position. These details can prevent an electrically correct assembly from becoming difficult to install during the customer’s final product integration.

Manufacturing Controls for GNSS, Sensors and Compact Interconnects

The parts most likely to create production questions are often those whose specifications cannot be judged from a footprint alone. Three areas deserve clear notes in the BOM and assembly drawings.

RF components and stack-up

Where the design uses an external antenna feed or discrete GNSS matching network, the approved component part numbers, copper geometry, keep-outs and ground structure should be preserved. An alternative inductor with the same nominal value may behave differently at RF frequencies. If a feed requires controlled impedance, the fabrication drawing should identify the target and applicable trace and stack-up requirements for impedance control. The factory should confirm any proposed change with the OEM before production.

Sensor placement and handling

For boards fitted with an IMU, package orientation must match the specified sensor axes. A barometric sensor may need its pressure opening protected during soldering and cleaning; an optical sensor may need defined placement and cleanliness around the light path. These are assembly instructions, not assumptions that apply to every watch design.

Power states and board-level checks

Sleep, active GNSS operation, BLE communication and charging can place different demands on the power system. When the customer supplies the procedure and limits, selected states can be checked during PCBA testing. Verifying that the receiver communicates, however, is not the same as proving outdoor positioning accuracy, antenna performance or real-world battery life.

PCB Fabrication and Assembly Services at Highleap Electronics

Highleap’s core manufacturing work supports many kinds of electronic hardware, including communications equipment, industrial controls, sensor products and consumer electronics. Our electronic manufacturing services bring together the processes that OEM customers may need at different stages of their board programs.

From fabrication data to an assembled board

PCB fabrication is driven by the specified construction: material, layer stack-up, finished thickness, copper features, drilling, surface finish and board outline. PCBA adds the approved BOM, component procurement or consignment, placement, soldering and inspection. A GPS watch controller with fine-pitch packages and miniature connectors may need a different assembly route from a larger industrial board, even though both are manufactured within Highleap’s broader PCB and PCBA service offering.

When customers prefer one coordinated supply arrangement, turnkey PCB assembly covering fabrication, parts and board assembly can reduce the number of separate purchasing handoffs. Programming, special inspection, test fixtures, flex or cable operations and any additional integration work are defined in the project quotation. The important distinction is what is included in the order, not a generic promise attached to the word “turnkey.”

Keeping GPS Watch PCBAs Consistent from Pilot to Volume Production

An accepted prototype establishes a design baseline, but repeat orders also need stable production information. For GNSS-sensitive assemblies, uncontrolled changes to matching parts, oscillator selections, PCB materials or sensor variants can create differences that are difficult to catch with visual inspection alone.

Release a build that can be repeated

• Lock critical materials: identify approved manufacturer part numbers, no-substitute items and any customer-authorized alternates.
• Confirm the first build: review component orientation, soldering, connector fit and specified electrical checks before releasing larger quantities. An agreed first-article inspection record can establish that reference.
• Control revisions: align PCB fabrication files, BOM, placement data, firmware and test instructions for each board variant.
• Plan inspection and test capacity: confirm the fixture, procedure and acceptance limits remain practical at the intended order quantity.

For programs moving beyond pilot quantities, high-volume PCB assembly planning addresses material scheduling, process consistency and repeatable inspection. Higher volume should follow an approved manufacturing baseline rather than introduce unreviewed changes to RF or sensor circuitry.

What Makes a GPS Sports Watch PCB Quotation Accurate?

A useful RFQ separates the cost of producing the bare board from the components, assembly work and testing required for a populated PCBA. This is particularly important when a watch uses several small rigid or flexible boards, optional sensor populations or different configurations by model.

For the manufacturing review, include:

• PCB files: Gerber or ODB++ data, fabrication notes, stack-up, board outline and impedance specifications where applicable.
• Assembly files: BOM with manufacturer part numbers, pick-and-place data, assembly drawings and quantities for each board revision.
• Critical build notes: RF matching restrictions, sensor orientation, pressure or optical openings, connector heights and flex details if used.
• Testing instructions: programming files where required, the features to verify, test method, fixtures and acceptance limits.
• Commercial details: prototype or production quantities, parts sourcing arrangement, delivery expectations and any special processing requirements.

Where complete RF, battery-life or sensor-performance validation is needed, that work should be defined separately from routine PCB and PCBA acceptance checks. Highleap can review the released manufacturing package, clarify the agreed scope and prepare a quotation that reflects the actual boards and processes required.
