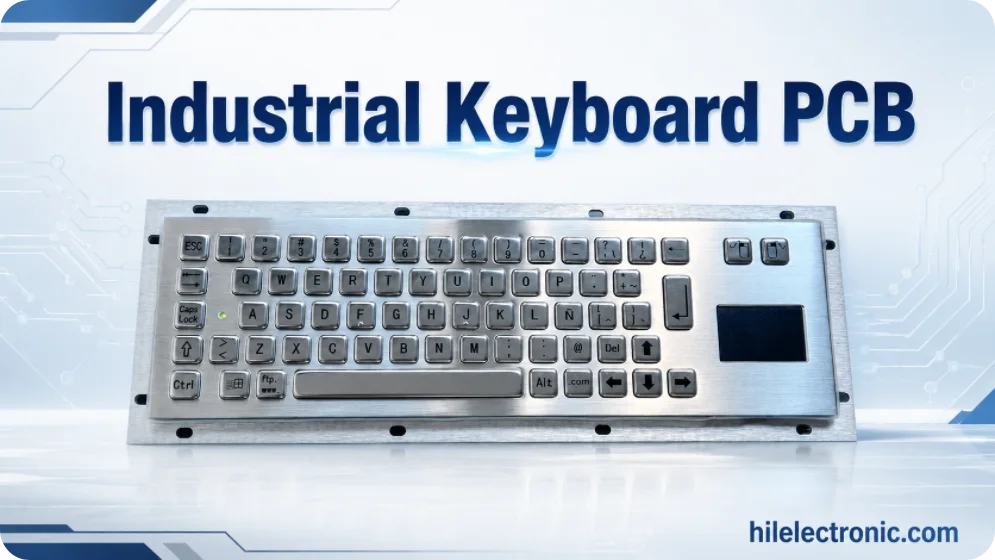

Industrial Keyboard PCB Manufacturer | Durable Control Panels

An industrial keyboard PCB manufacturer must design the production route around the equipment environment, service life and interface—not around consumer-keyboard assumptions. Industrial control input products may be membrane keypads, mechanical key arrays, capacitive panels, sealed control consoles or mixed interfaces with encoders, displays, emergency controls and cable harnesses.

Safety boundary: emergency-stop or safety-related functions require a customer-defined system architecture, applicable standards, risk analysis and product-level validation. A keyboard PCBA alone should not be represented as a certified safety function.

Highleap Electronics manufactures PCB and PCBA assemblies for industrial keyboards, machine control panels, operator terminals and embedded keypads. Scope can include bare PCB fabrication, SMT/THT assembly, connectors and harnesses, conformal coating where specified, firmware programming, complete input testing and enclosure or box-build integration.

Layer count varies with interface and protection needs. A two-layer board is common for straightforward matrices, while multilayer construction may be used for dense control, EMC or communication functions. Components may be mounted on both sides. An initial quote can begin with the application, key count and quantity; no PCB schematic is required.

Industrial Keyboard Requirements, Applications and Quote Inputs

The specification should start with use conditions: operating voltage, temperature, humidity, contaminants, cleaning agents, glove use, vibration, connector cycles, expected service life and replacement policy. These inputs determine switch technology, overlay, coating, connector, mounting and test scope.

Information Needed for an Industrial Keyboard PCB Quote

The first inquiry can be based on an equipment description, panel photo, interface requirement and approximate quantity. Detailed production files are confirmed after the project is qualified.

Input Architecture, Host Interfaces and Field-Fault Protection

Industrial products may use a mechanical matrix, membrane tail, discrete buttons, capacitive touch keys or mixed controls such as encoders and emergency-function inputs. The controller can report over USB HID, serial, CAN, GPIO or a proprietary protocol. Interface protection and isolation should be based on the equipment architecture and applicable customer standards.

Critical or safety-related functions should not be assumed from a general keyboard design. If a key participates in a safety function, the customer must define the required architecture, diagnostics, standards and validation responsibilities.

Industrial keyboards can connect through USB, serial, CAN, Ethernet and GPIO interfaces. The interface name alone is not enough to define robustness. Cable length, ground relationship, connector accessibility, shield termination and likely field faults determine whether isolation, termination, common-mode filtering or surge protection is required.

USB in industrial equipment

USB is convenient but can be exposed to ESD and ground noise through the operator panel. Connector anchoring, shield strategy and cable retention should be reviewed with the enclosure. A detachable service cable and a permanently installed cable have different mechanical risks.

RS-232/RS-485 and CAN

Differential field buses may need termination, fail-safe biasing, protection and optional galvanic isolation. The production test should verify direction control, baud rate and communication with a defined host. The PCB manufacturer should not infer system-level EMC compliance from the transceiver part number.

Custom harnesses

Direct GPIO or matrix connections through a tested cable harness are common in machine panels. Pinout errors can damage the controller or create unsafe commands. Keyed connectors, color codes, continuity testing and controlled mating references reduce field risk.

Durability, PCB Materials and Mechanical Protection

Protection starts at the product boundary

PCB coating cannot compensate for an enclosure leak, unsealed connector or unsuitable overlay. The product should define where contaminants are stopped and which assemblies remain exposed. Conformal coating may help against humidity and contamination, but connector contacts, touch electrodes, switches and test points require masking or special handling.

Interfaces need field-fault protection

Long cables can introduce ESD, EFT, surge, ground offset or miswiring risk. The protection level depends on the interface and installation. Highleap assembles the released TVS, filter, fuse, isolation or termination network and can support customer-defined validation, but compliance claims require product-level testing against named standards and limits.

Maintainability reduces lifecycle cost

Field equipment benefits from replaceable cables, keyed connectors, readable labels, accessible mounting and a controlled spare-PCBA revision. A cheaper permanently soldered harness may increase service cost. Manufacturing review can identify where connectorization or test points provide better total value.

Durability measures can include mechanically retained connectors, conformal coating, sealed overlays, corrosion-resistant finishes, strain relief, protected cable entries and replaceable subassemblies. Coating must not be applied blindly over connectors, test pads, capacitive electrodes or components that require ventilation or later rework.

• Define coating material, keepout and inspection criteria.
• Use enclosure support to prevent PCB flex under repeated key force.
• Choose connectors with appropriate retention and mating-cycle requirements.
• Provide serial, revision and orientation labels that remain visible after assembly.

PCB Materials, Coating and Mechanical Construction

Standard FR-4 may be suitable for many control panels, but the operating temperature, humidity, flammability, vibration and product certification should define the final material. Board thickness and copper weight should reflect connector load, mounting span and current—not a generic “industrial” label.

• Specify coating type, thickness/coverage expectations and keep-out zones.
• Control creepage/clearance where external voltage or isolation is involved.
• Use mechanical support near heavy connectors and frequently operated controls.
• Review solder alloy and component temperature ratings for the actual environment.
• Define labels and traceability that remain readable after cleaning or coating.

Manufacturing, Environmental Validation and Traceability

Industrial buyers commonly require controlled BOMs, approved alternates, incoming inspection, PCBA first-article records, AOI, functional test and lot traceability. Highleap can link the PCB revision, component lot, firmware version and test result to the assembly serial or batch identifier when requested in the project scope.

Industrial NPI should verify more than assembly appearance. A first-article package can record board revision, fitted options, critical dimensions, connector orientation, coating/masking, firmware, label and complete interface test. When a customer supplies a golden unit, differences should be recorded rather than silently copied if the sample conflicts with released files.

For high-mix production, traveler instructions should identify option resistors, connectors, communication variants and firmware. A shared PCB can reduce tooling cost, but uncontrolled variants can create field-service confusion. Separate SKU labels and test configurations are therefore part of manufacturing quality.

Environmental Validation and Field-Failure Analysis

Validation may include complete key operation, interface communication, supply variation, ESD, temperature exposure, humidity, vibration or chemical compatibility. The exact standards, severity levels, sample quantity and pass/fail limits can be confirmed during engineering review and must be agreed before production testing. Highleap can perform production functional testing and coordinate specified external validation when included in scope.

Lifecycle Supply, Spare Parts and Production Records

Industrial products may remain in service longer than consumer keyboards. The production package should control PCB revision, firmware, connector pinout, coating, labels and test limits. Single-source switches, displays, connectors and MCUs should be identified early enough for alternate qualification or last-time-buy planning.

Prototype, high-mix/low-volume production and repeat production can use different purchasing and fixture strategies. Stable BOMs, shared forecasts, panel utilization, setup reuse and controlled alternates support more predictable lifecycle cost. A replacement part must be reviewed for electrical behavior, package, firmware, mechanical fit and any product-certification impact before release.

Packaging, Spares and After-Sales Supply

Large control panels and exposed connectors can be damaged during transport even when the PCBA passed testing. Packaging should support the board without loading keys, displays, encoder shafts or cable exits. ESD protection, moisture barrier and desiccant are selected according to component and shipping requirements.

For long-life equipment, the spare-parts specification should state whether PCBAs are shipped programmed, paired with displays, coated or supplied as complete panels. Repeat-order data can be maintained by the manufacturer, while host compatibility and lifecycle-change approval remain part of the customer’s controlled product configuration.

Industrial Input PCBA Production Records

When required by the project, records can cover incoming inspection, first-article fit, coating or process identification, firmware revision, interface test, every-input output, harness continuity, serialized labels and lot traceability. Environmental or EMC validation requires a defined standard, representative enclosure and acceptance criteria.

Industrial Keyboard PCB FAQ

Can an industrial keyboard PCB be waterproof?

Waterproof performance is a finished-product property involving the PCB, overlay, gasket, enclosure, connector and assembly process. The required IP or ingress test must be defined.

What interfaces can an industrial keypad use?

USB, serial, CAN, GPIO and customer-specific interfaces are possible with the appropriate controller, transceiver, protection and firmware.

Is conformal coating always recommended?

No. It depends on the environment and can interfere with connectors, test points, switches or capacitive sensing if keepouts and process controls are not defined.

What supports long-term repeat production?

Controlled revisions, approved alternates, traceability, fixture records, firmware archives and lifecycle monitoring of critical components.
