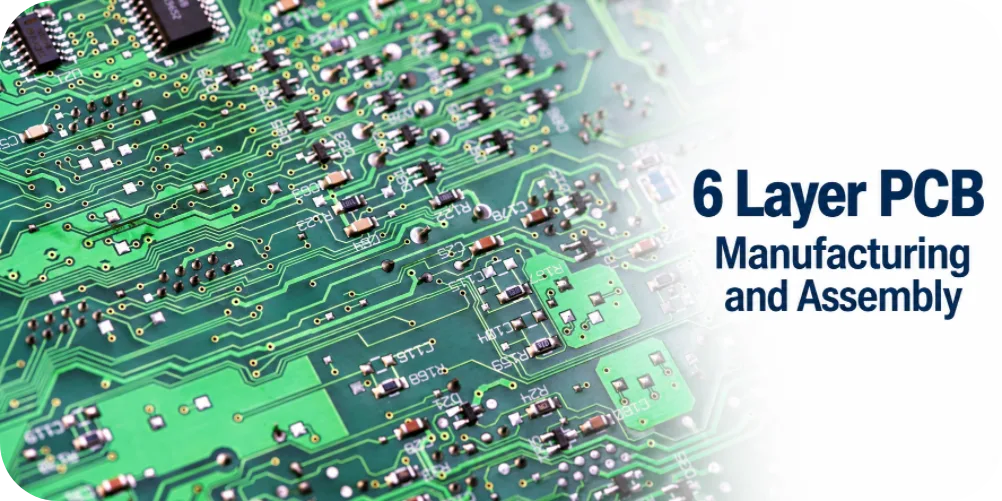

Quick-Turn 6 Layer PCB Manufacturer in China

Highleap Electronics manufactures six-layer printed circuit boards for electronic products that require additional routing capacity, carefully planned reference planes and defined electrical and mechanical specifications. Quotes are based on the actual fabrication data, including laminate grade, stackup, copper weights, finished thickness, via structure, surface finish and special processing requirements.

Whether you are preparing a prototype, transferring an approved design to production or sourcing bare boards and assembled PCBAs, the quotation needs to reflect the actual construction—not just the number of layers. Submit your current design files and order requirements so the manufacturing scope, technical questions and pricing can be reviewed together.

6 Layer PCB Types and Manufacturing Options

A six-layer PCB can have very different manufacturing requirements depending on its construction, materials, electrical specifications and mechanical features. Two boards with the same layer count and dimensions may require different production processes because one uses a standard plated-through-hole construction while the other includes gold fingers, controlled-depth machining, edge metallization or other special features.

The layer count alone is not enough to determine an accurate PCB quotation. Highleap reviews the fabrication data to assess board geometry, layer structure, drilling requirements, surface finish and any special processes. The following options identify the main requirements to define when sourcing a six-layer PCB.

Why Gerber Files Are Important for a 6 Layer PCB Quote

Gerber files define the copper patterns, solder mask, legend and other fabrication layers needed to understand the board’s physical layout. NC drill files specify hole locations and sizes, while stackup information and fabrication drawings define additional construction and process requirements. Together, these files allow the manufacturing team to assess the board’s actual production requirements.

For example, a six-layer PCB may have a standard outline and plated through-holes, while another design of the same size may include long and short gold fingers, segmented contact areas, controlled-depth slots, blind slots, edge metallization, blind or buried vias, or special dimensional tolerances. These features are not always fully defined by the layer count or a brief written description. Some require additional drawings, depth specifications, plating details or manufacturing notes.

Without the relevant files and specifications, important details may be missing from the quotation scope. A price based only on “6 layer PCB,” board dimensions and quantity may not account for special processes, inspection requirements or manufacturing constraints. Reviewing the actual design helps reduce incomplete pricing, repeated clarification and avoidable changes after the order is placed.

These categories help define the project scope; they do not imply that every combination is a standard build. Specialized materials, gold-finger constructions, controlled-depth features, edge metallization and other non-standard requirements must be checked against the actual design and manufacturing capabilities before quotation and order acceptance.

6 Layer PCB Stackup and Material Selection

The stackup determines how the six copper layers and dielectric materials work together. It affects routing capacity, reference-plane continuity, impedance, power distribution, finished thickness and manufacturing feasibility. For procurement, the important question is whether the proposed stackup meets the design requirements and can be built using the specified materials and tolerances.

Define the Layer Arrangement Before Quotation

Layer assignments should reflect signal routing, reference planes, power distribution and the needs of sensitive circuits. High-speed signals require appropriate return paths, while the available routing layers must accommodate the actual device pinout and interconnection density. There is no single six-layer stackup that is optimal for every design.

When requesting a quote, provide the copper weight for each layer, dielectric thicknesses, finished board thickness and any controlled-impedance requirements. For impedance-controlled traces or differential pairs, specify the target values, tolerances and relevant signal layers. Trace geometry, material properties and dielectric arrangement need to be assessed together.

A suitable PCB stackup design must account for layer assignments, dielectric spacing, reference planes and impedance targets. For an existing design, submit the released stackup rather than relying on a generic six-layer configuration.

Choose FR-4, High-Tg or Low-Loss Laminate

Standard FR-4 is used for many industrial and commercial electronic products. High-Tg laminates may be appropriate where thermal and reliability requirements call for a different material grade. High-speed and RF applications may require specified dielectric properties or low-loss material systems.

PCB material selection should account for operating conditions, electrical performance, assembly temperature profile, finished thickness and process compatibility. If a particular laminate manufacturer and grade are mandatory, identify them in the fabrication package. If alternatives are acceptable, define the properties that must be maintained and whether substitution requires approval.

For RF applications, high-frequency PCB material requirements may include specified dielectric constant, dissipation factor and electrical performance at the intended operating frequency. The laminate grade and stackup should be assessed against the actual design rather than selected by material name alone.

6 Layer PCB Fabrication Process

Six-layer PCB fabrication requires the internal circuits, laminated construction, plated interconnections and outer-layer features to meet the released design specification. The production route depends on the material system, board thickness, copper requirements, drilling structure and critical tolerances.

Internal Circuit Formation and Lamination

After the manufacturing data and construction requirements have been reviewed, the internal copper patterns are imaged and etched. Internal-layer inspection helps identify circuit defects before lamination makes those features inaccessible. The layers are then aligned and bonded according to the approved construction.

Layer registration, dielectric arrangement and material compatibility must be controlled against the design requirements. These factors are especially important where the design includes tight internal clearances, controlled impedance or special material combinations.

Drilling, Plating and Final Surface Processing

Drilling creates the specified holes, and plating establishes the required electrical connections between copper layers. Hole dimensions, annular rings, clearances and plating requirements must be compatible with the released design. Blind vias, buried vias, via filling and backdrilling can introduce additional process requirements and should be specified before production.

The outer-layer circuitry is completed and inspected, followed by solder mask, silkscreen and the selected surface finish. The board profile is then completed according to the approved drawing, and the finished boards undergo the inspections and electrical tests specified for the order. These steps form part of the PCB fabrication workflow, with the actual process route and acceptance limits determined by the board design, materials and approved manufacturing specifications.

Manufacturing Details That Need Early Confirmation

• Internal layer registration and copper clearances
• Finished copper thickness and etching requirements
• Dielectric arrangement and finished board thickness
• Minimum trace width, spacing and drill dimensions
• Via structures and sequential lamination requirements, where applicable
• Surface finish, electrical testing and inspection records

Resolving these details before production release reduces avoidable clarification cycles. If a proposed manufacturing change could affect electrical or mechanical performance, it should be reviewed and approved before implementation.
