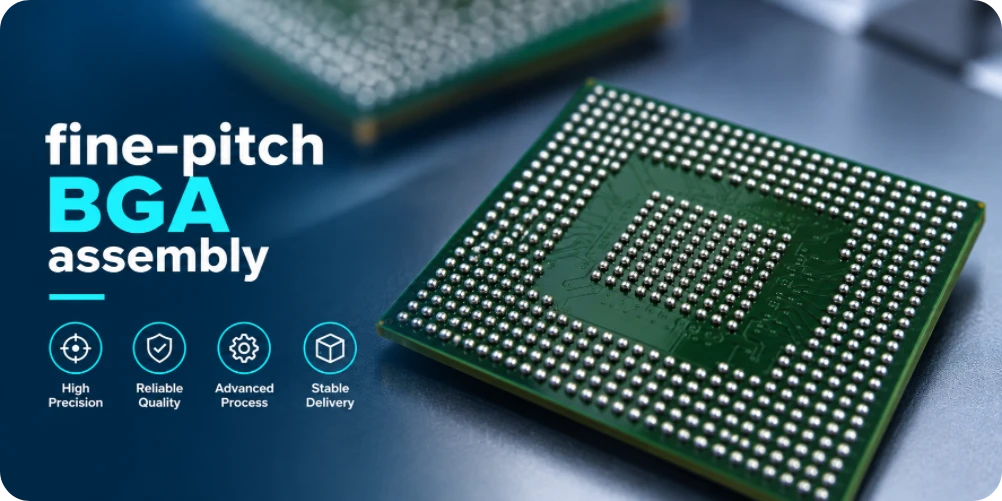

Fine-Pitch BGA Assembly Services for High-Density PCBAs

If your released PCB already contains a fine-pitch BGA, the useful question is not whether a supplier offers “BGA assembly” on a capability list. You need to know whether that supplier can take your actual package, PCB, BOM and placement data, build the board under a controlled SMT process, inspect the hidden solder joints and deliver a PCBA that matches the production requirements you released.

Highleap Electronics provides PCB fabrication and PCB assembly, so a fine-pitch BGA project can be handled as one manufacturing program. If you already have the design files, send the PCB data, BOM, centroid file, exact BGA manufacturer part number and required quantity. The manufacturing review can then focus on what actually determines the build: package geometry, PCB construction, stencil strategy, placement, reflow, inspection and test.

What a Fine-Pitch BGA Assembly Supplier Should Review Before Quoting

A fine-pitch BGA quote should be based on the complete board, not on the BGA package name alone. Pitch, ball arrangement and package dimensions establish part geometry, but the quotation also depends on the PCB stack-up, pad design, component density, assembly quantity, sourcing model and required inspection or test coverage.

Which files should be included in a fine-pitch BGA assembly RFQ?

• PCB fabrication data: Gerber or equivalent manufacturing files, including the released board revision and relevant fabrication notes.
• BOM: manufacturer part numbers, quantities per board and approved alternatives where applicable.
• Centroid/XY data: component locations, rotations and reference designators for SMT placement.
• BGA information: exact manufacturer part number, package drawing and land-pattern information when available.
• Assembly drawing: polarity, special assembly notes, populated locations and customer-specific instructions.
• Test requirements: electrical, functional or other verification required before shipment.

Highleap’s PCB assembly file requirements and PCB DFM checks are relevant when the released package needs a manufacturing review before the order is finalized.

Why does the same fine-pitch BGA require different manufacturing decisions on different boards?

A processor on a relatively open board and the same package surrounded by dense memory, QFN, small passives and high-speed interfaces do not create the same manufacturing conditions. The supplier needs to see the package in its real PCB environment before deciding how the board should be fabricated and assembled.

Fine-Pitch BGA PCB Design: Pads, Fanout and Board Construction

For fine-pitch BGA assembly, the PCB and the package form one interface. The land pattern controls solder connection geometry, while the fanout strategy determines how the array connects to the rest of the board. When routing space becomes limited, the board may require HDI structures or via-in-pad solutions, but those choices should come from the actual design rather than from the phrase “fine-pitch BGA” alone.

When does a fine-pitch BGA drive the PCB toward HDI?

HDI can provide additional routing access where a conventional through-via strategy cannot efficiently escape the BGA array. Whether it is necessary depends on pitch, ball map, signal count, layer stack-up, routing rules and the surrounding circuitry. Highleap’s HDI PCB manufacturing and HDI via design resources can be considered when the BGA fanout becomes a board-fabrication issue.

What should be checked around BGA pads and vias?

The review should confirm that the released land pattern matches the intended component, that pad-to-pad relationships are consistent with the fabrication rules, and that any vias placed near or within the BGA escape region have the required structure and finish. If via-in-pad is used, the fabrication specification needs to define the required treatment so the finished surface is suitable for the soldering process.

If the BGA is part of a high-speed design, the PCB fabrication review may also need to remain aligned with impedance and stack-up requirements. The objective is not to add HDI or other advanced construction automatically, but to manufacture the released electrical design without introducing avoidable process complexity.

Stencil Printing and Placement for Fine-Pitch BGA Boards

Once the PCB is released, fine-pitch BGA assembly becomes a printing-and-placement problem before it becomes a reflow problem. The solder-paste deposit has to be appropriate for the BGA pads and the rest of the board, while placement must put the package onto the intended land pattern with the surrounding SMT population taken into account.

1. Stencil review: evaluate the BGA apertures together with adjacent component apertures and the complete board design.
2. Paste printing: apply the solder paste through the production stencil under controlled printing conditions.
3. Paste verification: use solder paste inspection where required by the production plan to identify printing variation before placement.
4. Vision-assisted placement: place the BGA and surrounding components from the released centroid and component data.
5. Pre-reflow review: confirm the board is ready for thermal processing rather than discovering a placement or paste issue after soldering.

Why can stencil design affect a fine-pitch BGA assembly yield?

The BGA array contains many closely spaced solder locations, so a printing issue can affect multiple joints at once. Aperture geometry, paste behavior, stencil condition and print parameters therefore need to be considered as a system. At the same time, the stencil cannot be designed around the BGA in isolation when the same board contains very small passives, QFN devices or larger components with different paste-volume requirements.

Does placement accuracy alone determine BGA assembly quality?

No. Placement is one part of the process. A package can be positioned correctly and still produce a poor joint if the PCB footprint, paste deposit, component condition or reflow process is unsuitable. That is why a serious fine-pitch BGA program evaluates placement together with printing, soldering and inspection.

Reflow Process Control and Solder-Joint Formation

Fine-pitch BGA solder joints form underneath the package, so reflow has to be controlled around the actual solder system, PCB construction and component requirements. There is no single temperature profile that should be copied across every BGA board.

What determines the reflow profile for a fine-pitch BGA?

The solder alloy and paste, PCB thickness and copper distribution, component thermal characteristics, package requirements and overall board population all influence the profile. Highleap’s reflow soldering and reflow oven resources provide additional manufacturing context for controlled SMT soldering.

For a BGA production build, the profile should be associated with the approved board and process configuration. If the PCB construction, solder material or major component population changes, the process should be reviewed rather than assuming the old profile remains appropriate.

What solder defects are particularly important beneath a fine-pitch BGA?

Potential issues include insufficient or excessive solder, bridging, opens and incomplete joint formation. The appropriate inspection method and acceptance criteria should be selected according to the package, product risk and customer requirements rather than treating every BGA build identically.

X-Ray Inspection, AOI and Electrical Test for Fine-Pitch BGA

Because the BGA joints are hidden under the package, inspection has to be designed around what can and cannot be seen from the board surface. AOI remains valuable for visible assembly features, while X-ray can provide access to the concealed BGA solder-joint region. Electrical and functional tests answer a different question: whether the finished board behaves according to the released test requirements.

Why is X-ray important for fine-pitch BGA assembly?

Visual inspection cannot directly see the complete solder array beneath the package. X-ray inspection can be used to examine internal joint features and identify conditions that require further review. Highleap provides X-ray inspection and AOI inspection as part of its PCBA manufacturing resources.

Can AOI replace X-ray for a fine-pitch BGA?

AOI and X-ray are complementary rather than interchangeable. AOI can inspect accessible component and solder features, while X-ray is suited to hidden-joint inspection. The required combination should be based on the actual assembly and the customer’s quality plan.

When should electrical or functional testing be added?

If the product has defined electrical limits, interface behavior or system functions that must be verified, inspection alone is not enough. Highleap’s electrical testing and functional testing resources can be incorporated according to the released test procedure.

Fine-Pitch BGA in Mixed-Technology PCBA Programs

A fine-pitch BGA rarely arrives on a board by itself. A production PCBA may combine the BGA with QFN, CSP, fine-pitch ICs, 0201 or other small passives, connectors, shielding and through-hole components. The supplier therefore needs to control the whole assembly rather than optimizing one package at the expense of the rest of the board.

How does a dense component population change the assembly plan?

Different packages create different placement, paste and thermal requirements. A large connector can influence mechanical access; a QFN can introduce another concealed solder interface; very small passives can be sensitive to paste and thermal variation. The process should be planned around the complete BOM and placement map.

For programs that combine SMT and through-hole parts, Highleap can also support through-hole PCB assembly. For turnkey projects, turnkey PCB assembly can combine component sourcing with PCB assembly according to the agreed project scope.

What if the fine-pitch BGA is next to a connector or mechanical component?

Clearance, placement sequence and inspection access become part of the manufacturing review. Mechanical components that must be installed later should not obstruct the SMT process or the inspection route required for the BGA area.

Prototype, First Article and Repeat Production

The transition from a first fine-pitch BGA build to repeat production should be treated as a controlled manufacturing handoff. Prototype boards are useful for confirming the released data and process assumptions; production requires those decisions to become stable manufacturing information.

1. Prototype build: assemble the agreed quantity using the released PCB, BOM and placement data.
2. Process review: evaluate printing, placement, reflow and inspection findings from the build.
3. First article: verify the production configuration and customer-defined acceptance requirements.
4. Revision control: align PCB, BOM, stencil, assembly and test revisions before repeat orders.
5. Production release: manufacture recurring lots against the approved configuration and document agreed deviations.

What should be locked before a recurring fine-pitch BGA order?

At minimum, the production team should know which PCB revision, component part numbers, approved alternates, stencil revision, inspection scope and test procedure belong to the order. Highleap supports prototype PCB assembly and first-article inspection for this transition.

Choosing a Fine-Pitch BGA Assembly Partner

For a fine-pitch BGA project, supplier selection should go beyond a list of placement machines. The practical test is whether the manufacturer can connect the engineering data, PCB fabrication, SMT process, hidden-joint inspection and production handoff into one controlled workflow.

What should a buyer ask a fine-pitch BGA assembly supplier?

• Can the supplier review the actual BGA package and PCB data before production?
• Can PCB fabrication and assembly be coordinated when both are required?
• How are solder-paste printing, placement and reflow handled for the actual board?
• What inspection method is available for hidden BGA solder joints?
• Can the supplier follow customer-defined electrical or functional tests?
• Can the manufacturing process move from prototype or first article into repeat production without losing revision control?

Highleap’s published SMT capability includes BGA and micro-BGA assembly with pitch capability down to 0.2 mm, along with X-ray analysis and microscope inspection. That figure should be understood as part of the factory’s published SMT capability—not as a substitute for reviewing the specific package, PCB construction, process and inspection requirements of an individual order.

If your requirement is already defined, the most efficient next step is to send the manufacturing package rather than request a generic capability statement. Highleap can evaluate the actual fine-pitch BGA board, coordinate PCB assembly services with PCB fabrication where required, and support the project through the agreed production stage.
