Why PCB Testing is Necessary

Discovering faults in your product at the last minute is every designer’s nightmare. Electronics, no matter how well-designed or meticulously built, are prone to problems. Many electronics come out of the prototype stage with bugs and issues for designers to troubleshoot. However, unnoticed problems that surface after the product is in the field can lead to significant problems for the company.

Testing electronics, especially printed circuit boards (PCBs), is crucial as it helps prevent several issues. To understand how PCB testing can improve your products, let’s explore what PCB testing entails and the primary methods used to evaluate PCBs.

Why PCB Testing is Necessary

Testing is a critical part of PCB manufacturing. Conducting PCB testing throughout the production cycle can save money and prevent issues in the final production run.

While design analysis techniques can minimize major issues during the early stages, various physical board tests are crucial. These tests, conducted on prototypes or small-scale assemblies, focus on potential shorts, solder joint issues, and functionality, ensuring that each tested PCB will function as intended.

Benefits of PCB Testing

Many companies consider PCB testing a must due to its numerous advantages:

1. Bug Identification: PCB testing helps identify problems, whether in functionality or manufacturability, allowing designers to make necessary adjustments.
2. Time Savings: Testing in the early stages saves time by identifying major issues during prototyping. This enables designers to quickly determine the root cause of each problem, making adjustments and moving on to production faster, reducing product lead time.
3. Cost Reduction: PCB testing prevents the wasteful production of faulty products by using prototypes and small-scale assemblies for testing. Thorough testing early in the design process reduces production costs significantly.
4. Fewer Returned Products: PCB testing lowers the chances of selling defective products or those that don’t meet performance standards, resulting in fewer returned products, reduced refund costs, and higher customer satisfaction.
5. Increased Safety: PCBs are used in critical electronic technologies, and their failure can cause major issues. Testing prior to manufacturing ensures that machines and workers are not damaged or injured due to improper design during production.

While thorough testing isn’t necessary for all PCBs, the majority of new designs benefit from robust and frequent testing. Establishing an appropriate PCB testing procedure tailored to your organization’s needs can yield these benefits.

What is PCB Testing and What is Being Tested?

PCB testing and inspection encompass a wide variety of methods to check if a PCB meets standards. These methods evaluate various components of PCBs to ensure their quality. The primary components tested include:

1. Lamination: Tests ensure the laminate’s resistance to peeling by force or heat, which is crucial for the PCB’s lifespan.
2. Copper Plating: The quality of copper foil is tested for tensile strength and elongation.
3. Solderability: Testing ensures components can be firmly attached to the board, preventing soldering defects.
4. Hole Wall Quality: Ensures hole walls will not crack or delaminate under thermal stress.
5. Electrical: Tests the PCB’s ability to pass electric currents with minimal leakage.
6. Environment: Tests for water absorption and resistance to environmental factors like corrosion and humidity.

These factors are analyzed early in materials testing and environmental tests, while factors like electrical conductivity and functionality are analyzed with various methods and equipment.

Popular PCB Testing Methods

PCBs are the heart of electronic devices, ensuring their functionality and reliability. To maintain the highest standards, various testing methods are employed during and after the manufacturing process. These tests help identify defects, ensure quality, and guarantee the proper functioning of PCBs. In this article, we will explore some popular PCB testing methods, their advantages, disadvantages, and applications.

Visual Inspection

Visual inspection is a fundamental method where experienced technicians visually inspect PCBs for defects and irregularities using their eyes and magnifying glasses. This method is effective for identifying welding defects and analyzing component placement and solder mask application. While it is quick and cost-effective, it is time-consuming and relies heavily on the technician’s skills, making it suitable for simple designs with larger components.

Flying Probe Testing

Flying probe testing is a cost-effective alternative to in-circuit testing, utilizing small probes to make contact with test points on the PCB. This method receives electrical and power test signals from the test locations, ensuring proper PCB functionality. It is low-cost, flexible, and suitable for small to medium-sized boards with higher component densities, but less effective for large-scale tests.

Automated Optical Inspection (AOI)

Automated Optical Inspection uses cameras to capture high-resolution images of PCBs, comparing them with design templates to identify defects. It offers greater accuracy than manual methods and can be integrated into the production process for early defect detection. However, it is limited to surface defect detection and requires database quality for accurate matching.

Automated X-ray Inspection (AXI)

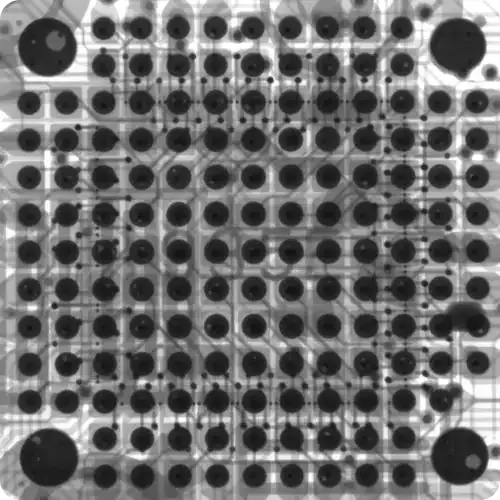

Automated X-ray Inspection utilizes X-rays to visualize solder joints in 2D or 3D, making it suitable for hidden joints in components like ball grid arrays (BGAs). It has the highest defect detection rates and focuses on solder joint quality, but it is time-consuming, costly, and requires experienced operators, making it suitable for high-volume production of boards with chip components.

In-Circuit Testing (ICT)

In-Circuit Testing examines each circuit on a PCB, addressing almost 90% of defects. It is efficient, swift, and suitable for mass-produced boards, but unsuitable for small boards and incapable of detecting defects like excessive solder.

Burn-In Testing

Burn-In Testing exposes PCBs to elevated temperature and voltage stress to detect defects and ensure reliability. It enhances product reliability, reduces costs related to returns and warranty claims, and improves quality. However, it is costly, can potentially damage components, and is stressful for components.

Functional Testing

Functional Testing checks the functionality of PCB components, offering a cost-effective alternative to specialized testing methods. It is highly flexible and suitable for testing almost all types of PCBs, but requires skilled personnel to identify defects and boards can fail under stressful conditions.

Time Domain Reflectometry Test (TDR)

Time Domain Reflectometry Test checks the electrical properties of PCB components, such as capacitance and inductance. It sends an electrical pulse through a PCB trace to test its characteristics.

Aging Test

Aging Test checks product aging in controlled environments to ensure quality and stability. The product is exposed to controlled temperature and humidity settings for a period to analyze its performance.

PCB testing methods play a crucial role in ensuring the functionality, reliability, and quality of electronic devices. Each method has its advantages, disadvantages, and applications, making them suitable for different stages of PCB manufacturing and testing processes. By employing these methods, manufacturers can produce high-quality PCBs that meet the demands of modern electronics.

How to Protect Your PCB with Better Designs

To protect your PCB and ensure it passes inspection and testing, consider using top design techniques:

1. Design for Manufacturing (DFM): Arrange PCB topology with the manufacturing process in mind to avoid issues like slivers, islands, and solder bridges.
2. Design for Assembly (DFA): Determine how to design the PCB for quick and effective assembly.
3. Design for Test (DFT): Design PCBs for easy detection and location of failures to reduce testing time.
4. Design for Supply Chain (DFSC): Consider component life cycles to ensure a long lifespan for your PCB design.

Implementing these design techniques early in the design process can minimize production costs and development time.

Common Defects in Circuit Board Testing

Opens and Shorts

An open circuit occurs when the conductive pathway on a PCB is disrupted, resulting in a lack of connection between two points. This can be caused by a break in the trace or a faulty component. A short circuit, on the other hand, occurs when two conductive paths unintentionally connect, causing current to flow between them. Opens and shorts can lead to circuit malfunctions or complete failure if not detected and rectified during testing.

Soldering Defects

Soldering defects are common in PCBs and can occur due to various reasons. Poor soldering can result in insufficient or excessive solder, leading to weak connections or shorts. Insufficient solder can cause open circuits, while excessive solder can lead to short circuits or bridging between pads. Soldering defects can result in connectivity issues and affect the overall functionality of the PCB.

Component Defects

Defects in components can occur during PCB testing due to various factors, including improper handling, electrostatic discharge (ESD), and improper storage conditions. These defects can lead to malfunctions in components, affecting the performance and reliability of the PCB. Component defects can result in device failures and can be challenging to detect, requiring thorough testing procedures.

Inaccurate Component Positioning

Inaccurate component positioning can occur during PCB assembly, leading to components being attached in inappropriate places on the board. This can result in short circuits or disruptions in the circuit, affecting the overall functionality of the PCB. Proper component positioning is crucial to ensure the integrity and reliability of the PCB.

PCB testing is essential for identifying and rectifying common defects that can occur during the manufacturing process. Opens and shorts, soldering defects, component defects, and inaccurate component positioning are among the common defects encountered in PCB testing. By using appropriate testing methods and protocols, manufacturers can ensure the production of high-quality PCBs that meet the standards of reliability and functionality.
