PCB Resin Plug Hole Technology in PCB Manufacturing process

Resin Plug Holes PCB

The resin plug hole technology in PCB manufacturing has gained significant traction in recent years, particularly for high-precision multilayer PCB boards and products with considerable thickness. This process aims to resolve issues that traditional green oil plug holes and resin filling methods cannot address. However, due to the inherent properties of resin, the production of high-quality resin plug holes involves overcoming several challenges. This article delves into the intricacies of resin plug holes, their significance, the manufacturing process, and the quality considerations that ensure optimal performance in modern electronic devices.

What is a Resin Plug Hole?

Resin plug holes, also known as resin-filled vias or resin-clogged holes, are specialized features in printed circuit boards (PCBs). These holes are filled with a resin material, typically an epoxy or similar substance, during the PCB manufacturing process. The primary purpose of this process is to seal the holes completely, preventing them from extending through the entire PCB. This ensures that the electrical connections are contained within specific layers, without interfering with components or traces on the opposite side of the board.

Importance and Benefits of Resin Plug Holes

The significance of resin plug holes lies in their ability to address various PCB design and manufacturing challenges. Here are the key benefits:

• 1. Preventing Through-Hole Penetration: Resin plug holes seal vias that would otherwise penetrate the entire PCB, containing electrical connections within specific layers.
  2. Enhancing Signal Integrity: They help minimize signal interference and crosstalk, crucial for high-frequency or high-speed PCB designs.
  3. Improving Reliability: Resin-filled vias enhance the PCB’s reliability and durability by protecting against environmental factors, moisture, and contamination.

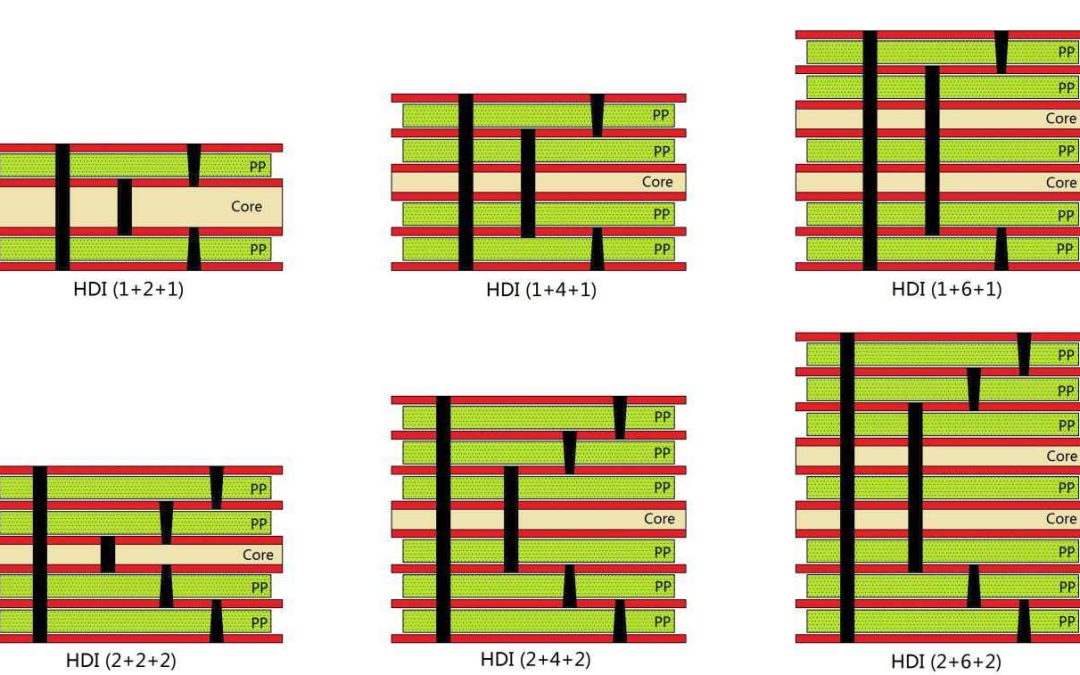

  4. Facilitating HDI Technology: Essential for High-Density Interconnect (HDI) PCBs, resin plug holes allow for component miniaturization and high packing density.
  5. Minimizing Solder Bridging: By preventing solder from flowing through vias during assembly, resin plug holes reduce the risk of solder bridging, which can lead to short circuits and operational problems.

The PCB Manufacturing Process for Resin Plug Holes

The manufacturing process of resin plug holes involves several meticulous steps to ensure quality and reliability. Here’s a detailed look at the process:

1. Production for Outer Layer Meeting Negative Film Requirements (Thickness Diameter Ratio ≤ 6:1):
   • Negative Film Criteria: The process starts with adhering to negative film requirements, considering factors like line width/gap, PTH hole size, and PCB thickness.
   • Fabrication Steps: Inner layer production, pressing, browning, laser drilling, browning reduction, outer layer drilling, copper sinking, whole board hole filling electroplating, slice analysis, outer layer graphics, outer layer acid etching, and standard procedures.
2. Production for Outer Layer Meeting Negative Film Requirements (Thickness Diameter Ratio > 6:1):
   • Challenges of High Thickness Diameter Ratio: When the thickness diameter ratio exceeds 6:1, additional steps are required to meet through-hole copper thickness requirements.
   • Additional Plating Process: Following whole board hole filling electroplating, a conventional electroplating line is used to plate through-hole copper to the required thickness.
3. Outer Layer Not Meeting Negative Film Requirements (Line Width/Gap ≥ a and Thickness Diameter Ratio ≤ 6:1):
   • Adapting to Non-Negative Film Criteria: A modified approach is taken for outer layers deviating from negative film requirements but maintaining an acceptable thickness diameter ratio.
   • Fabrication Steps: Inner layer production, pressing, browning, laser drilling, browning reduction, outer layer drilling, copper sinking, whole board hole filling electroplating, slice analysis, outer layer graphics, pattern electroplating, outer layer alkaline etching, outer layer AOI, and standard procedures.
4. Outer Layer Not Meeting Negative Film Requirements (Line Width/Gap < a or Line Width/Gap ≥ a and Thickness Diameter Ratio > 6:1):
   • Adapting to Challenging Scenarios: Adjustments are made for outer layers straying significantly from negative film criteria.
   • Fabrication Steps: Inner layer production, pressing, browning, laser drilling, browning reduction, copper sinking, whole board hole filling electroplating, slice analysis, copper reduction, outer layer drilling, copper sinking, whole board electroplating, outer layer graphics, graphics electroplating, outer layer alkaline etching, outer layer AOI, and standard processes.

Schematic diagram of resin-plug-hole and through-hole comparison

Quality Considerations for Resin Plug Holes

Ensuring the quality of resin plug holes in PCB manufacturing is crucial for overall product reliability. One major concern is bubble formation within the resin, as bubbles can absorb moisture and expand when exposed to high temperatures, such as during the tin furnace process. Proper baking of the resin can mitigate this issue by expelling trapped air, but any remaining visual defects may indicate a faulty product that requires further inspection.

Another key factor is the resin’s properties. The resin must have low moisture absorption, good thermal stability, and adequate mechanical strength to withstand the demands of PCB operation. Finally, after the resin has been polished, a layer of copper is added to the resin plug hole. This step transforms the hole into a functional pad, enhancing the PCB’s performance and long-term reliability.

When Should You Use Resin Plug Holes in PCB Design?

If you are debating whether to incorporate resin plug holes into your PCB design, understanding when they are truly necessary can help guide your decision. Resin plug holes are not needed in every PCB, but they become essential in specific scenarios where performance and reliability are critical.

1. High-Reliability Applications: If your PCB is used in industries like medical devices, automotive, or aerospace, resin plug holes are often vital. In these sectors, reliability is paramount, and resin plug holes help prevent issues such as solder wicking or voids in via-in-pad designs, particularly under Ball Grid Arrays (BGAs). If the solder flows into the via during assembly, it can leave insufficient solder on the pad, resulting in weak joints. Resin plugs block the vias, maintaining strong connections and preventing failures over time, which is crucial for life-critical or safety-focused products.
2. High-Density PCB Designs: For HDI PCBs, resin plug holes are indispensable. In compact devices like smartphones, wearables, and telecommunication equipment, where components are packed tightly together, planarity becomes crucial. Resin plug holes create a smooth surface by filling vias, ensuring that fine-pitch components are properly aligned and soldered. Without this, misalignment and electrical shorts can occur, compromising the functionality of the entire board.
3. Harsh Operating Environments: If your PCB is exposed to moisture, thermal cycling, or mechanical stress, such as in automotive or military applications, resin plug holes provide added protection. They seal the vias, preventing contaminants from entering, which could otherwise cause corrosion, delamination, or failure over time. In environments where temperature extremes and vibration are common, resin plugs enhance the mechanical stability of the vias, helping the board withstand stress and maintain its integrity.

Challenges in Resin Plug Hole Production

The production of resin plug holes in PCBs is a highly specialized process that presents several challenges. These challenges must be meticulously addressed to ensure the reliability and performance of the final product. Below are some of the primary challenges encountered during resin plug hole production:

1. Material Selection

Resin Compatibility: Choosing the right resin material is critical. The resin must be compatible with the PCB substrate and other materials used in the manufacturing process. Incompatibility can lead to poor adhesion, inadequate sealing, or chemical reactions that compromise the integrity of the PCB.

Thermal Properties: The resin must withstand the thermal stresses encountered during PCB operation and assembly processes, such as soldering. Inadequate thermal properties can lead to expansion, contraction, or degradation of the resin, affecting the reliability of the plug holes.

Moisture Absorption: Resins with high moisture absorption can lead to swelling and degradation, especially in high-humidity environments. This can cause delamination or failure of the plug holes, compromising the PCB’s functionality.

2. Process Control

Filling Precision: Achieving uniform and complete filling of the vias with resin is challenging. Incomplete filling can result in voids or air pockets, which can lead to electrical failures or mechanical weaknesses.

Curing: The curing process must be precisely controlled to ensure that the resin hardens correctly. Under-curing can leave the resin soft and prone to deformation, while over-curing can make it brittle and susceptible to cracking.

Surface Planarization: After filling and curing, the surface of the resin plug holes must be planarized to ensure a smooth and even finish. This step is critical for subsequent layering and component placement. Any irregularities can cause issues with layer alignment and electrical connectivity.

3. Quality Assurance

Inspection and Testing: Rigorous inspection and testing are necessary to identify any defects in the resin plug holes. This includes visual inspection for surface defects, X-ray inspection for internal voids, and electrical testing to ensure continuity and insulation properties.

Adherence to Standards: Ensuring that the resin plug holes meet industry standards such as IPC-6012 and IPC-6013 is essential for guaranteeing reliability and performance. Compliance with these standards requires stringent process controls and thorough documentation.

4. Environmental Factors

Contamination Control: The manufacturing environment must be controlled to prevent contamination from dust, moisture, or other particulates that can affect the resin’s performance. Cleanroom conditions are often required to minimize contamination risks.

Temperature and Humidity: Maintaining consistent temperature and humidity levels is crucial during the resin filling and curing processes. Fluctuations can cause variations in resin viscosity and curing rates, leading to inconsistent results.

5. Cost and Scalability

Cost Management: The production of resin plug holes involves additional steps and materials, which can increase manufacturing costs. Balancing cost with quality is a key challenge, especially for high-volume production runs.

Scalability: Scaling the process for large production volumes while maintaining consistent quality is challenging. Automated systems and precise process controls are necessary to achieve scalability without compromising on quality.

6. Technological Advancements

Keeping Up with Innovations: The PCB industry is continually evolving, with new materials and processes being developed. Staying up-to-date with the latest advancements and integrating them into the manufacturing process is essential for maintaining a competitive edge.

Training and Expertise: Ensuring that manufacturing personnel are adequately trained and skilled in the latest techniques for resin plug hole production is vital. Continuous training and development are required to keep pace with technological advancements and industry standards.

Addressing the Challenges

Successfully addressing these challenges requires a comprehensive approach that includes:

• • Research and Development: Continuous R&D to explore new resin materials and process improvements.
  • Process Optimization: Implementing advanced process controls and automation to enhance precision and consistency.
  • Quality Management: Establishing rigorous quality assurance protocols and regular audits to ensure compliance with standards.
  • Environmental Control: Maintaining cleanroom conditions and stable environmental parameters during production.
  • Cost Efficiency: Balancing cost considerations with quality requirements to achieve scalable and cost-effective production.

Conclusion

Resin plug holes represent a significant advancement in PCB manufacturing, addressing challenges posed by miniaturization, signal integrity, and reliability. Their production involves a meticulous process that requires careful material selection, process control, and quality assurance. By understanding the benefits, challenges, and applications of resin plug holes, PCB manufacturers can optimize their processes to meet the demands of modern electronic devices.

Highleap Electronic offers specialized services in resin plug hole production, leveraging state-of-the-art facilities and experienced technicians to deliver high-quality PCBs that meet stringent industry standards. Whether you are dealing with consumer electronics, aerospace, automotive, or medical devices, resin plug holes can enhance the reliability and performance of your electronic products.

For more information on how resin plug holes can benefit your PCB designs and manufacturing processes, contact Highleap Electronic today.
