Rogers RO3006 PCB Manufacturing for Dk 6.15 Compact RF Circuits

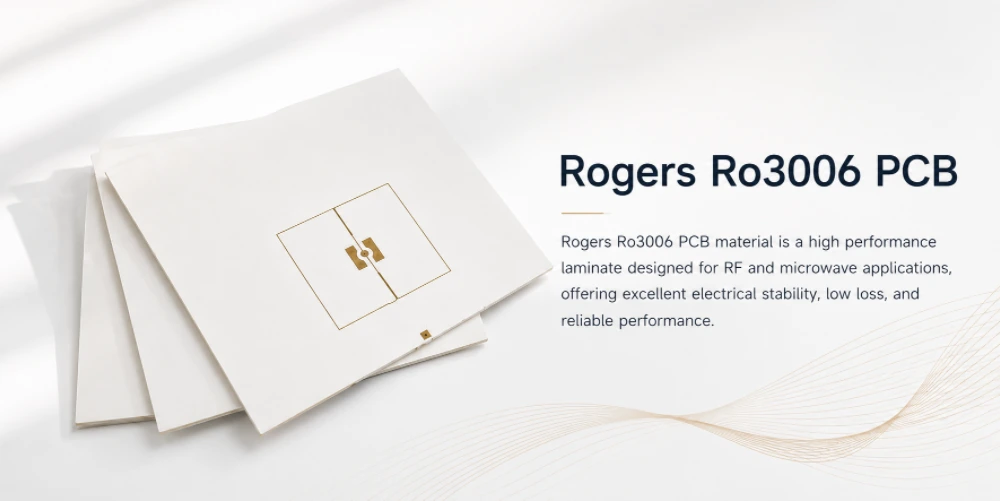

Rogers RO3006 PCB manufacturing is used when an RF design needs a Dk 6.15 laminate for compact geometry without moving to the more aggressive Dk 10.2 class. RO3006 is a ceramic-filled PTFE material with process Dk 6.15 +/- 0.15 and dissipation factor 0.0020 at 10 GHz. Highleap Electronics checks stackup, impedance, drill quality, hole preparation, plating, finish, and assembly constraints before production.
Table of Contents
When RO3006 Is the Right PCB Material
RO3006 is used when an RF circuit needs a higher dielectric constant than low-Dk microwave laminates but does not require the stronger miniaturization of RO3010. It fits compact antennas, filters, couplers, GPS/GNSS circuits, microwave modules, and controlled-impedance RF boards where Dk 6.15 helps reduce circuit size while keeping the design manufacturable.
The key decision is whether the stackup, copper thickness, and trace geometry can be held consistently in production. RO3006 is not just a material substitution; it should be released with a defined dielectric thickness, copper profile, impedance target, and inspection method so the fabricated board matches the RF model.
RO3006 Is a Mid-High Dk Material, So the Stackup Must Be Released Early
RO3006 sits between lower-Dk microwave laminates and very high-Dk materials such as RO3010. This makes it useful for compact RF circuits, but it also means the electrical model is strongly tied to dielectric thickness, copper profile, etched trace width, and final plated copper. A design that looks easy in Gerber may still fail impedance or frequency response if the stackup is changed after quoting.
The topic that must be settled in detail is stackup release. Highleap asks for the impedance table, target tolerance, dielectric thickness, copper weight, copper profile assumption, and any simulation assumptions at RFQ stage. If the stackup is left to the factory after the RF layout is finished, the supplier may need to adjust line width, finished copper, or dielectric thickness, and those changes can move filter response, coupler performance, or antenna matching.
For hybrid boards, the review also covers whether RO3006 is used on every RF layer or only in selected sections. Material transitions affect lamination, registration, drilling, and plated-hole reliability. The buyer should define which layers carry controlled RF geometry, which layers are digital or power support, and whether the board needs impedance coupons, first article measurement, or repeat-order locking.
- Release the RO3006 stackup before final DFM, not after the supplier starts tooling.
- Keep simulated copper thickness and finished copper targets aligned with the fabrication drawing.
- For hybrid builds, define where RO3006 starts and stops so registration and lamination can be reviewed.
Material Properties That Affect Production
| Item | Manufacturing meaning |
|---|---|
| Process Dk | 6.15 +/- 0.15 at 10 GHz, suitable for compact RF circuits. |
| Dissipation factor | 0.0020 at 10 GHz, supporting practical microwave performance. |
| PTFE ceramic system | Requires controlled drilling, hole-wall preparation, and plating. |
| Controlled impedance | Trace width, copper profile, dielectric thickness, and etch compensation must match the model. |
DFM and Stackup Review Before Quoting
A reliable quote starts with the complete Gerber set, drill files, netlist, board outline, stackup drawing, material callout, copper weight, surface finish, solder mask notes, impedance targets, and any assembly requirements. Highleap checks whether the design can be fabricated repeatably before tooling starts.
| DFM item | What to check |
|---|---|
| Narrow geometry | Review trace width, spacing, solder mask registration, and edge clearance. |
| Via reliability | Check annular ring, aspect ratio, desmear route, and plating thickness. |
| Repeat orders | Lock the approved stackup, coupon design, finish, and inspection requirements. |
Manufacturing Process Controls
The process route should be selected before material is released to production. Typical controls include material verification, inner layer inspection, lamination review, drill quality, hole-wall preparation, copper plating, solder mask registration, surface finish, routing accuracy, electrical test, and final inspection.
For repeat orders, Highleap can keep the approved stackup, copper requirement, finish, panel format, coupon design, inspection checklist, and packaging notes stable. This reduces the risk that later batches drift from the qualified prototype.
Applications, Quote Package, and Quality Records
RO3006 fits compact antennas, RF filters, couplers, GPS and GNSS circuits, microwave modules, and hybrid RF boards that need Dk 6.15 performance with practical production control.
Send Gerber files, drill files, stackup, RO3006 thickness, copper weight, impedance table, coupon requirements, surface finish, solder mask color, test requirements, prototype quantity, production quantity, and assembly data if PCBA is required.
Depending on product risk, Highleap can support standard electrical test, impedance coupons, microsection reports, material certificates, solderability records, first article inspection, outgoing quality reports, and lot traceability.
