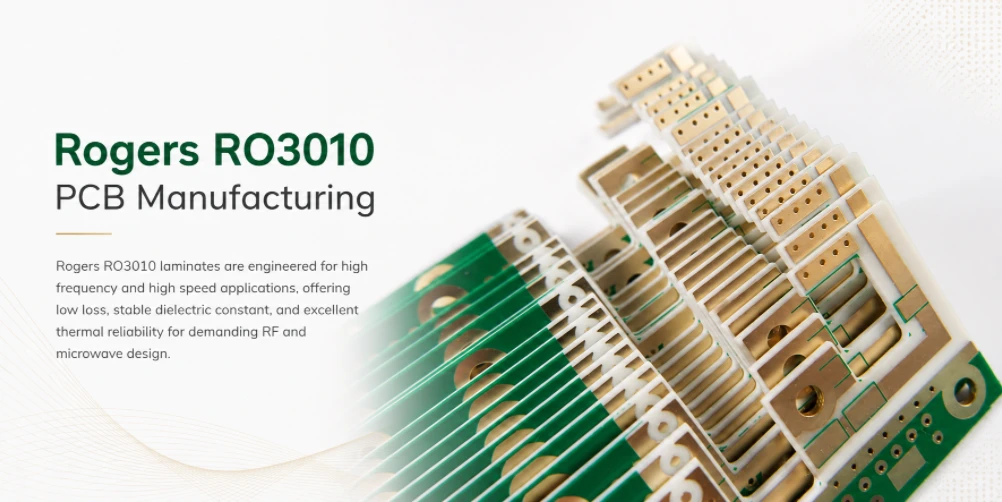

Rogers RO3010 PCB Manufacturing for Dk 10.2 Miniaturized Microwave Circuits

Rogers RO3010 PCB manufacturing is chosen when a microwave circuit needs strong miniaturization from a Dk 10.2 ceramic-filled PTFE laminate. RO3010 has process Dk 10.2 +/- 0.30 and dissipation factor 0.0022 at 10 GHz. It can reduce filter, coupler, resonator, and antenna area, but the same high dielectric constant makes trace width, dielectric thickness, routing tolerance, drill quality, and final inspection more sensitive.

Table of Contents

1. When RO3010 Is the Right PCB Material
2. High-Dk Miniaturization Makes DFM the Main Risk
3. Material Properties That Affect Production
4. DFM and Stackup Review Before Quoting
5. Manufacturing Process Controls
6. Applications, Quote Package, and Quality Records

When RO3010 Is the Right PCB Material

RO3010 is chosen when a microwave circuit needs high dielectric constant for significant size reduction. It is used in compact filters, couplers, resonators, antennas, power dividers, and RF modules where Dk 10.2 allows shorter electrical structures and denser layouts than lower-Dk laminates.

The tradeoff is that miniaturized RF geometry gives the fabricator less tolerance margin. Before quoting, the design should confirm finished copper, dielectric thickness, etched trace width, spacing, annular ring, connector launch geometry, and any frequency-critical copper pattern. This prevents a compact RF design from becoming difficult to reproduce.

High-Dk Miniaturization Makes DFM the Main Risk

RO3010 can make RF circuits much smaller, but that size reduction compresses the manufacturing window. Trace widths, gaps, annular rings, solder mask dams, and routed features may become small enough that normal tolerance assumptions are no longer acceptable. The board may have only a few layers, but it should still be reviewed like a precision microwave part.

The core topic is manufacturable miniaturization. Highleap checks whether the proposed trace geometry can be etched repeatably, whether the selected copper weight will push traces outside the model, whether drilled holes have enough annular ring, and whether connectors or shields create assembly constraints. On high-Dk boards, a small change in etched trace width or dielectric thickness can have a larger practical effect because the RF geometry is already compact.

A reader preparing an RO3010 RFQ should avoid sending only Gerbers and a material name. The quote should identify dielectric thickness, copper profile, finished copper target, impedance or frequency-sensitive features, coupon method, and any connector launch requirement. If the board contains filters, couplers, resonators, or antenna matching structures, those features should be marked as critical so engineering does not treat them as ordinary copper shapes.

• Confirm that compact traces, gaps, and annular rings are inside the supplier’s repeatable process window.
• Control copper weight and etch compensation because they directly affect small RF geometry.
• Identify critical RF structures on the drawing so inspection focuses on the features that matter.

Material Properties That Affect Production

DFM and Stackup Review Before Quoting

A reliable quote starts with the complete Gerber set, drill files, netlist, board outline, stackup drawing, material callout, copper weight, surface finish, solder mask notes, impedance targets, and any assembly requirements. Highleap checks whether the design can be fabricated repeatably before tooling starts.

Manufacturing Process Controls

The process route should be selected before material is released to production. Typical controls include material verification, inner layer inspection, lamination review, drill quality, hole-wall preparation, copper plating, solder mask registration, surface finish, routing accuracy, electrical test, and final inspection.

For repeat orders, Highleap can keep the approved stackup, copper requirement, finish, panel format, coupon design, inspection checklist, and packaging notes stable. This reduces the risk that later batches drift from the qualified prototype.

Applications, Quote Package, and Quality Records

RO3010 is suited for miniaturized microwave filters, compact couplers, patch antennas, resonators, RF front-end modules, and dense hybrid assemblies where board area is limited and repeatable geometry is critical.

Send Gerber data, drill files, netlist, board outline, RO3010 thickness, copper weight, impedance targets, finish, solder mask, coupon notes, test needs, quantity, delivery schedule, and assembly files when turnkey PCBA is needed.

Depending on product risk, Highleap can support standard electrical test, impedance coupons, microsection reports, material certificates, solderability records, first article inspection, outgoing quality reports, and lot traceability.
