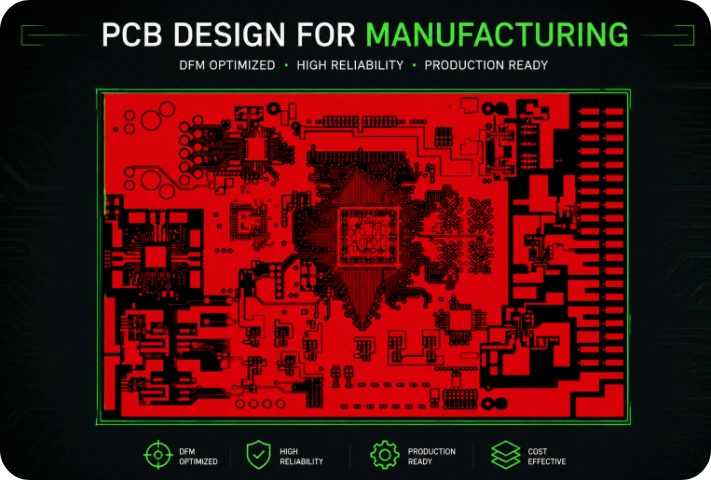

PCB Design for Manufacturing Rules and Design Decisions

PCB design for manufacturing means designing your circuit board so that the manufacturing process can build it efficiently, at high yield, and at the cost that was quoted. Every design decision — copper weight, via diameter, trace spacing, board outline, component placement, silkscreen character size, solder mask expansion, drill file structure — directly determines what the fabricator and assembly house can or cannot do, and at what cost. A design that ignores manufacturing constraints does not just produce a DFM flag at quote review; it increases unit cost, extends lead time, reduces first-pass yield, and sometimes creates field failures that pass every factory test. This guide covers the design decisions that matter most — with the specific numbers behind each rule and the manufacturing reason each rule exists — so designers can make informed trade-offs rather than memorizing constraints they do not understand.

Submit Files for Free DFM Review

What PCB Design for Manufacturing Actually Means — and Why It Starts Before Layout

PCB design for manufacturing is not a checklist at the end of layout. It is the discipline of making design decisions — at every stage from schematic through file preparation — with a clear understanding of how each decision constrains or enables the manufacturing process. The earlier a manufacturing constraint is considered, the cheaper it is to respect.

The Cost of Fixing DFM Problems at Different Stages

• At schematic / component selection: Choosing a QFN instead of a BGA at the same pitch to avoid via-in-pad fill saves $8–15 per board in HDI manufacturing cost, with zero design rework. Specifying 1080 prepreg instead of 2116 in the HDI buildup keeps blind via aspect ratio below 0.8:1 — the difference between a reliable via and a field failure — with no routing change and no cost change at the material level.
• At 50% layout: Recognizing that asymmetric copper distribution will cause board warp during reflow, and adding balanced copper fill to lighter layers, takes 30 minutes. Discovering this after boards are built means scrapping the lot.
• At final layout, pre-Gerber: Running a silkscreen-to-pad DRC and relocating 15 reference designators takes one hour. Delivering these violations to the fabricator adds 24–48 hours of hold and risks CAM misinterpretation.
• At first-article or volume production: A DFM issue that reached fabrication costs $500–$5,000 and 1–3 weeks of schedule. At volume, 5% scrap on 10,000 boards at $12 each is $6,000 in recoverable material alone — before field failure costs.

DFM Is a Design Skill, Not a Factory Rule

The designer who understands why a 0.10mm minimum trace exists for ½oz copper (etch undercut increases with copper depth), why via aspect ratio above 10:1 produces unreliable plating (chemistry cannot reach the barrel center), or why a board outline without a defined datum creates fabrication ambiguity (dimensional error accumulates from feature to feature) can make intelligent trade-offs when performance requires pushing limits. The designer who treats DFM as a binary pass/fail checklist will always be optimizing blind.

Stack-up and Material Decisions That Define Manufacturing Boundaries

Stack-up decisions made before layout begins determine what is and is not manufacturable in the finished board. These are largely impossible to change after routing without a complete re-spin.

Symmetric Stack-up: Non-Negotiable for Thin Boards

A symmetric stack-up — where layer arrangement and dielectric thicknesses above the board centerline mirror those below — prevents differential thermal expansion during lamination and reflow. When a board expands and contracts asymmetrically, it bows permanently. For boards below 1.0mm thickness, common in HDI PCB and wearable designs, asymmetric stack-ups reliably cause SMT placement failures from warpage.

Design decision: mirror layer pair assignments deliberately — if L2 is a 1oz copper plane, L(N-1) must be a 1oz copper plane. Where signal routing prevents this, add hatched copper fill on the lighter side. It requires no electrical connection, costs nothing at fabrication, and equalizes thermal expansion behavior.

Matching Material Tg to Assembly Process

• Standard FR4 (Tg 130–140°C): Adequate for single-sided SMT with lead-free reflow. Marginal for double-sided lead-free — two full reflow cycles at 255–260°C peak brings the board too close to its glass transition temperature. For double-sided assembly, specify mid-Tg (150–160°C) as the minimum.
• High-Tg FR4 (Tg 170°C+): Required for double-sided lead-free assembly, automotive operating range (−40°C to +125°C), and high thermal cycle applications. Cost premium: 10–20% over standard FR4 — less than one rework cycle.
• CAF-resistant laminates: For designs with via-to-via hole spacing below 0.20mm in humid environments, standard FR4 can develop conductive anodic filament growth between adjacent drilled holes over time. Specify CAF-resistant grades (Isola 370HR, Shengyi S1000-2M) when both tight hole spacing and humidity exposure are present.

Designing a Complete Controlled-Impedance Specification

A controlled-impedance trace is only as accurate as the specification behind it. A trace width in the EDA tool calculates against assumed dielectric parameters. If fabrication notes say only “50Ω required,” the fabricator uses their default stack-up, which may differ from what your EDA tool assumed — producing lot-to-lot impedance variation that causes signal integrity failures in the field.

A complete impedance specification requires all five elements: layer number, trace width, target impedance (Ω), tolerance (±%), and reference plane layer names. For example: “50Ω ±10% on L1, trace width 0.127mm, reference plane L2.” Missing any element forces the fabricator to assume.

Copper Weight and Its Manufacturing Implications

Copper weight affects trace width minimums, etch quality, and impedance simultaneously:

• ½oz (17µm): Required on HDI buildup layers for laser drilling (conformal mask etching needs thin copper for precise window edges); used on high-density signal layers where 0.075–0.10mm traces are required
• 1oz (35µm): Standard for most signal and plane layers; minimum trace 0.125mm in standard process
• 2oz (70µm): For power distribution layers carrying sustained current; minimum trace 0.20mm; confirm inner-layer capability with fabricator before committing
• Mixed copper weights on the same layer create etching problems — the etchant removes different depths simultaneously, causing over-etching of thin features or under-etching of heavy copper sections. Design with uniform copper weight per layer.

Trace, Space, and Copper Design Rules: What Each Number Comes From

Trace and Space Minimums by Copper Weight

Minimum trace and space values derive from etch undercut physics: the etchant attacks copper sideways as well as downward, and the lateral undercut increases with copper depth. A designer who specifies 0.10mm traces on 2oz copper is asking for a feature the etching process cannot reliably produce.

Design to standard minimums unless density genuinely requires advanced tolerances. Advanced minimums need capability confirmation, cost more, and reduce yield margins.

Trace Routing Angles and Acid Traps

Traces routed at angles less than 90° create enclosed copper pockets where etchant pools and continues dissolving copper after surrounding areas are clean. The resulting thinned or severed trace may pass room-temperature electrical test and fail under thermal stress. Design decision: route at 45° bends as the default; enable acute-angle DRC constraints. For copper pour boundaries near trace junctions, verify no acute-angle pockets form in the pour geometry.

Copper Slivers and Isolated Islands

Thin, isolated copper features — narrow pour sections, trace wedges between adjacent pads, copper fragments left by clearance rules — are design decisions that create manufacturing problems. Features narrower than 0.10mm can detach during etching and drift to adjacent copper, causing shorts. Isolated copper islands above 1mm² on inner layers create uneven etch loading that shifts trace widths and affects controlled impedance.

Design decision: after pour generation, run the floating copper DRC. Assign, remove, or annotate all net-less copper. Set a 0.10mm minimum copper feature width rule.

Teardrops at Via and Pad Connections

Where a trace meets a via or pad at a T-junction, the sharp internal corner is both an acid trap location and a mechanical stress concentration during drilling. Teardrops — gradual copper fillets at the transition — eliminate both risks and reinforce the annular ring. Enable automatic teardrop insertion globally in the EDA tool before generating output files.

High-Voltage Clearance (IPC-2221)

Standard trace-spacing rules are calibrated for low-voltage signal levels. Above 30V, clearance requirements increase with voltage per IPC-2221 — a relationship that most signal-layer DRC rules do not enforce. Designs with 48V power rails alongside 3.3V logic frequently have inadequate clearance between power and signal domains because the designer applied signal-level rules universally.

• Up to 30V external uncoated: 0.10mm minimum
• 31–50V external uncoated: 0.60mm; internal: 0.10mm
• 51–100V external: 1.00mm; internal: 0.10mm
• 101–170V external: 1.50mm; internal: 0.20mm

Design decision: define separate net classes for high-voltage nets in the EDA tool with voltage-appropriate clearance constraints.

Via and Drill Design Decisions: Aspect Ratio, PTH/NPTH, and Slot Holes

Via Aspect Ratio: A Reliability Decision Made at Layout

Aspect ratio (board thickness ÷ finished hole diameter) determines whether plating chemistry can distribute copper uniformly inside the via barrel. Above 10:1, chemistry cannot reliably reach the barrel center — the result is thin copper at the barrel midpoint, which cracks after 50–200 thermal cycles. The via passes initial electrical test and fails in the field.

• ≤8:1: Standard — reliable plating, no cost premium
• 8–10:1: Advanced — pulse plating required, ~15% cost premium
• 10–12:1: High-end — significant cost and lead time; verify fabricator capability before committing
• >12:1: Not achievable by standard drill-and-plate; requires laser-drilled blind vias or board thickness reduction

The common unintentional violation: a designer increases board thickness from 1.6mm to 2.4mm for mechanical stiffness while keeping 0.25mm signal vias. Aspect ratio goes from 6.4:1 to 9.6:1 — from standard to advanced — without any awareness that the reliability profile of every through-hole on the board has changed.

Annular Ring: Designing with Drill Tolerance in Mind

The annular ring absorbs drill positional error. Standard CNC drilling has ±0.075mm registration tolerance, which directly consumes annular ring: a 0.10mm ring with ±0.075mm tolerance has a worst-case remaining ring of 0.025mm on inner layers — a real breakout risk in production.

• External layer annular ring: 0.125mm preferred, 0.10mm absolute minimum
• Internal layer annular ring: 0.10mm preferred, 0.075mm absolute minimum
• Add teardrops at all via connections to reinforce the junction against breakout

PTH vs. NPTH: Understanding Drill Compensation

PTH barrels receive electroplated copper that reduces the finished hole diameter by 0.05–0.10mm — a 0.30mm finished PTH requires a 0.35–0.40mm drill. NPTH receives no compensation: finished hole ≈ drill size. When PTH and NPTH are mixed in a single drill file without explicit attribute markers, the fabricator must infer type from geometry. Any misclassification produces wrong hole sizes or unintended plating.

Design decision: always generate separate PTH and NPTH drill files and state this in the fabrication notes. One line eliminates the entire class of ambiguity.

Slot Holes: A Complete Definition in the Drill File

Slot holes for connector leads, edge-mount components, and mechanical features must be defined as routed paths in the drill file (Excellon G85 syntax or ODB++ routed feature), not as shapes in the board outline layer. When only the mechanical layer shows a slot and the drill file contains only round holes, the fabricator must query the designer for dimensions, PTH/NPTH status, and tolerance before building.

Design decision: define all slots explicitly in the drill file and annotate each in the fabrication drawing with start and end coordinates, width, dimensional tolerance, and PTH/NPTH designation.

Component Placement and Footprint Design for Reliable Assembly

Footprint Accuracy Is a DFM Decision

The footprint defines what the assembly process works with. An inaccurate footprint — wrong pad spacing, undersized pads, missing courtyard — produces assembly problems that trace entirely back to a design decision. Reference IPC-7351 for all standard package land patterns. Designers who build footprints from scratch without IPC-7351 frequently create pads that are too small (inadequate joint), too large (tombstoning risk on small passives), or wrongly spaced (bridges on fine-pitch ICs).

QFN Thermal Pad: The Most Frequently Misdesigned Footprint

• Thermal pad copper area: 70–80% of the package exposed pad. Full copper (100%) traps outgassing and creates voids; below 60% provides inadequate thermal and mechanical contact.
• No thermal relief spokes: Spokes increase thermal resistance by 2–4×. Use solid copper connection.
• Vias in thermal pad: 0.30mm drill, 4–9 in a grid, specify as resin-plugged vias. Open vias wick solder during reflow, starving the thermal pad and lifting the package — a failure mode that passes all factory electrical and visual testing.
• Stencil aperture: Window-pane into 3×3 or 4×4 grid with 0.15mm gaps to control paste volume and prevent solder bleedout under the device.

Placement Clearances and Component Orientation

• SMD body to SMD body: 0.15mm minimum, 0.25mm preferred
• SMD body to board edge: 2.5mm minimum — production conveyor rail clearance
• Tall component (>3mm) to fine-pitch component: 3.0mm minimum in the reflow direction — tall components shadow downstream paste deposition on fine-pitch pads
• Through-hole to adjacent SMD: 2.5mm minimum for selective wave soldering clearance

Reflow ovens have a defined process direction. Orienting polarized 0201 and 0402 passives with their polarized axis parallel to the reflow direction reduces tombstone yield loss. This is a placement decision that costs nothing to get right.

Silkscreen Design Rules That Affect Production Quality

Character Size and Printability

Silkscreen character violations produce illegible markings that affect traceability, regulatory compliance labeling, and operator identification. The rules derive from physical printing constraints:

A 1.0mm-tall character needs at least 0.20mm line width. A 0.10mm line width needs at least 0.50mm height. Characters with line widths below 0.08mm cannot print — ink cannot bridge the printing-medium gaps — producing broken strokes that are invisible in EDA but predictable from the geometry alone.

Design decision: set EDA silkscreen layer global defaults to 1.0mm minimum character height and 0.15mm minimum line width. Enable the silkscreen printability DRC constraint before generating output.

Characters on SMD Pads

EDA tools place reference designators at the component centroid, which for 0402 and 0201 passives routinely deposits character strokes across pad areas. Ink on a solderable surface interferes with solder wetting. This is a design file output problem — the resolution is running the silkscreen-to-SMD-pad DRC check as a mandatory pre-output step and relocating all conflicts before generating Gerbers.

Bottom-Side Mirror and File Verification

Bottom-layer silkscreen must be mirrored in the Gerber output. Verify in a standalone Gerber viewer, not the EDA native view. Also confirm no silkscreen elements were accidentally placed on copper layers — zero-width copper traces on the silkscreen layer produce phantom copper features in the Gerber.

Solder Mask Design Decisions That Determine Assembly Yield

Mask Opening Size Rules

The solder mask opening around each pad determines solderable copper area and the mask dam that prevents solder bridges. These are footprint design decisions with direct assembly yield consequences:

• Standard mask expansion: +0.05mm per side (0.10mm total over pad copper)
• Fine-pitch IC at 0.40–0.50mm pitch: Reduce to +0.025mm per side to maintain the mask dam between adjacent pads
• Minimum mask dam between adjacent pads: 0.10mm; 0.075mm advanced limit. Below 0.075mm the sliver delaminates during reflow and causes solder bridges
• Mask opening smaller than pad copper: Mask over pad edges reduces solderable area and traps flux — mask openings must equal or exceed the pad copper

SMD Pads on Copper Pour: A Design Output Verification Issue

When SMD component pads sit on copper pour fill areas, some EDA tools generate solder mask openings only for pads explicitly defined as SMD-type library elements — not for copper that is pour-derived. Those pads ship covered by solder mask. Assembly creates dry joints that pass room-temperature continuity testing and fail under thermal cycling.

Design decision: after Gerber generation, open the solder mask layer in a standalone viewer and confirm every SMD pad has an opening — specifically checking pads adjacent to or inside pour regions.

Via Mask Treatment

Without explicit specification, the fabricator applies their shop default. Design decision: one line in the fabrication notes covers everything: “Signal vias: tented both sides. Thermal vias in component pads: plugged and capped per IPC-4761 Type VII. Test vias: exposed both sides.”

Board Outline, Panelization, and SET Array: Designing for the Factory Floor

Board Outline: A Complete Manufacturing Instruction

The board outline Gerber is a machine input file — it tells the router where to cut. For it to be a complete manufacturing instruction, the designer must also provide: the finished edge definition (not the routing path centerline — a 2mm slot routed with a 2mm bit has a 1mm offset), dimensional tolerances on each feature, a defined datum point (X0/Y0 origin from which all dimensions are measured), and PTH/NPTH designation for all internal cutouts.

For rectangular boards, this is straightforward. For boards with notches, internal cutouts, radiused corners, or non-orthogonal edges, the designer must provide a mechanical drawing alongside the outline Gerber, annotating all critical dimensions with tolerances, the datum point, and cutout specifications. Without it, dimensional error accumulates across features and fabrication requires a designer query before starting.

Panelization and SET Arrays: Design It or Lose Control

When boards require SMT panel assembly, defining the panel layout is a design responsibility — not a default to the fabricator. The fabricator optimizes for their production efficiency. The designer knows where ceramic capacitors are placed near potential break points, which edge-mount components need clearance in specific depaneling directions, and what the target assembly line’s conveyor rail dimensions are.

Key risks of leaving panel definition to the fabricator:

• Ceramic capacitors placed within 5mm of tab break points — depaneling stress cracks them, a failure mode appearing months into field deployment
• Copper features within 0.50mm of V-score lines — V-score weakens the substrate and stresses copper at snap
• Irregular board shapes not nested (alternating 0°/180°) to minimize panel waste
• Panel rail dimensions mismatched to the assembly line’s conveyor width

Design decision: for any board requiring SMT panel assembly, include a panel layout file or drawing specifying board positions and orientations, V-score or tab-route positions and which edges get which treatment, rail dimensions (minimum 5mm), fiducial specifications (1.0mm copper circle, 2.0mm mask opening, minimum 5mm from any edge, 4mm clear area), and a defined panel reference origin.

Copper-to-Edge Clearances

• Copper to mechanical board edge: 0.20mm minimum, 0.30mm preferred
• Copper to V-score line: 0.50mm minimum
• Ceramic capacitors to tab break point: 5.0mm minimum — specify router separation where this cannot be met

Fabrication File Preparation: Translating Design Intent into Manufacturing Instructions

The Gerber Package as a Manufacturing Specification

The Gerber file package is the complete set of manufacturing instructions. Every ambiguity the fabricator must resolve before building adds processing time and introduces the risk of a resolution that does not match the designer’s intent. File preparation is a design responsibility, not a clerical task.

Fabrication Notes: Specify What You Need

• Material: Full grade and Tg — “Isola 370HR, Tg min 180°C, halogen-free,” not “High-Tg FR4” (ambiguous between supplier grades)
• Copper weights per layer: “1oz outer after plating; ½oz inner layers” — not “1oz copper”
• Surface finish with tolerance: “ENIG per IPC-4552, Ni 3–5µm, Au 0.05–0.10µm.” For edge connectors: “Electroplated hard gold, Au 0.75–1.25µm over Ni 3–5µm” — soft ENIG gold wears through in under 100 connector insertions.
• IPC class: Class 2 (standard) or Class 3 (high-reliability) — determines minimum copper plating in via barrels, annular ring requirements, and inspection standards
• Via treatment by type: If not specified, the fabricator applies one default to all via types
• Drill file structure: “PTH and NPTH in separate files” — eliminates the most common drill file ambiguity
• Controlled impedance: All five elements — layer, trace width, target, tolerance, reference plane names

Pre-Submission Checklist

1. Silkscreen printability DRC — characters below 1.0mm height or 0.15mm line width flagged and resolved
2. Silkscreen-to-SMD-pad DRC — all overlaps resolved before output
3. Acute angle DRC — angle constraint ≥90° enabled; teardrops at all via and pad junctions
4. Floating copper DRC — all net-less copper assigned, removed, or annotated as intentional
5. Inter-net spacing DRC with same-net overlap check enabled
6. Board outline verified closed and complete — datum defined; slots in drill file; all cutouts annotated with tolerance and PTH/NPTH
7. PTH and NPTH in separate drill files — stated in fabrication notes
8. Standalone Gerber viewer: solder mask openings confirmed on all SMD pads including pour-fill areas
9. Via mask treatment specified in fabrication notes
10. Panelization drawing included where SMT panel assembly is required
11. Impedance specification complete — all five elements present
12. Fabrication notes complete — material, copper weights per layer, surface finish, IPC class, via treatment, drill file note
