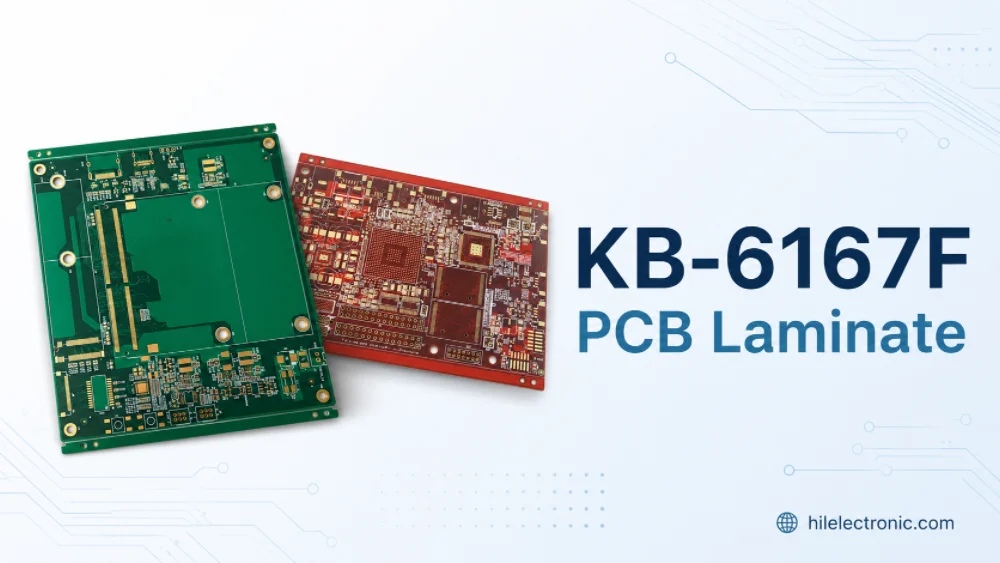

KB-6167F PCB Laminate for High-Tg Multilayer PCB Manufacturing

KB-6167F PCB laminate is used when a multilayer PCB needs a Kingboard high-Tg FR-4 material with stronger thermal reliability than ordinary FR-4. In a real PCB or PCBA project, the material name affects the stackup, lamination cycle, drilling quality, plated-through-hole reliability, lead-free assembly planning, documentation, and repeat production control.

Highleap Electronics manufactures and assembles PCBs using customer-approved laminates and prepregs. We do not produce KB-6167F laminate. When the drawing, AVL, customer specification, or previous qualification record calls for KB-6167F, the manufacturing task is to source the approved material, confirm the construction, build the board to the agreed stackup, and keep the same material basis from prototype to batch production.

Production snapshot

Material family	Kingboard high-Tg FR-4 multilayer laminate/prepreg
Main production intent	High-layer-count boards, lead-free assembly, improved PTH reliability, anti-CAF projects
Factory control points	Material callout, stackup, copper balance, lamination, drilling, plating, impedance, PCBA thermal exposure
Not a direct replacement for	Standard FR-4, KB-6160, KB-6165, KB-6168LE, or halogen-free Kingboard materials without customer approval

Related manufacturing topics include multilayer PCB manufacturing, PCB impedance control, PCB assembly services, Low CTE FR-4, and PCB quick quote.

KB-6167F Material Control in PCB Production

KB-6167F is normally selected for projects where generic FR-4 does not provide enough thermal margin, via reliability, or material consistency for lead-free processing. In manufacturing, this material decision starts before CAM tooling. The fabrication package identifies the approved Kingboard laminate/prepreg construction, board thickness, copper weights, layer count, and whether the material requirement is fixed by customer specification or allowed to use approved equivalents.

Material callout and approved construction

A clear drawing callout prevents uncontrolled material substitution. If KB-6167F is specified, the purchase package needs to identify whether the customer requires the exact model, an approved alternative list, or only a performance class such as high-Tg, anti-CAF FR-4. These are different procurement and qualification situations.

Exact material callout: Kingboard KB-6167F laminate/prepreg
Performance-driven callout: high-Tg FR-4, anti-CAF, lead-free compatible
AVL-driven callout: approved Kingboard material or customer-approved equivalent
Production control: keep the same material basis for pilot and repeat builds

Where KB-6167F fits in the Kingboard material range

KB-6167F sits above standard and mid-Tg FR-4 materials in reliability intent. It is not the same decision as selecting KB-6160 for cost-sensitive boards or KB-6165 for mid-Tg lead-free applications. If a project also evaluates KB-6160 PCB laminate or KB-6165 PCB laminate, the comparison should focus on layer count, reflow exposure, via aspect ratio, CAF risk, and qualification status rather than price alone.

Engineering Data, Standards, and Stackup Impact

KB-6167F belongs to the high-reliability FR-4 material group used for multilayer PCB builds. Public supplier information describes it as a high-Tg, multi-functional phenolic-cured resin system with inorganic fillers, designed for high-complexity, high-layer, lead-free PCB applications. The exact production values must always be confirmed against the current supplier datasheet, purchased construction, and customer approval package.

Item	Typical project meaning	Manufacturing note
High Tg FR-4	Higher thermal margin than ordinary FR-4	Confirm test method and current datasheet value before quoting
Anti-CAF capability	Useful for dense multilayer boards and reliability-sensitive layouts	DFM checks hole-to-copper spacing, glass/resin system, moisture exposure, and bias risk
Low Z-axis expansion	Improves via barrel reliability during thermal cycling	Important for thick boards, high layer counts, and multiple lead-free reflow cycles
Lead-free compatibility	Supports Pb-free assembly process planning	Assembly profile, finish, components, and rework exposure still require review
Dk / Df	Used for impedance modeling, not as an ultra-low-loss material claim	Values vary with frequency, glass style, resin content, and construction

Stackup data before impedance calculation

For controlled impedance boards, the stackup defines more than total thickness. It specifies core/prepreg selection, copper foil, finished copper thickness, dielectric spacing, solder mask treatment, and coupon method. The impedance model becomes unreliable if the material callout and production stackup are not aligned.

Projects with high-speed interfaces can also be reviewed through controlled impedance PCB manufacturing. KB-6167F is generally evaluated as a high-reliability FR-4 choice, not as a replacement for dedicated low-loss high-speed laminates.

Multilayer Fabrication and Lead-Free PCBA Execution

KB-6167F PCB fabrication is usually linked to multilayer reliability: registration, resin flow, copper balance, through-hole plating, and thermal stress resistance. The fabrication route must match the material and board structure, especially when the design includes many layers, dense vias, high copper weight, or strict finished thickness tolerance.

Lamination
Copper balance, resin flow, press cycle, material storage, and thickness control define the first manufacturing risk area.

Drilling and plating
Aspect ratio, hole wall quality, smear control, and copper plating reliability determine PTH performance.

Assembly exposure
Surface finish, component mass, reflow profile, and rework limits affect lead-free PCBA reliability.

PCBA planning before bare board release

For turnkey builds, the PCB and assembly package are reviewed together. A material that is suitable for lead-free soldering still needs a controlled assembly process. BOM status, component thermal mass, reflow profile, stencil design, X-ray requirements, and functional test instructions change cost and lead time.

Customers who need complete delivery can combine KB-6167F fabrication with PCB assembly services. If the board requires conformal coating, selective soldering, press-fit connectors, or high-voltage spacing review, those requirements belong in the first quote package.

Applications, Comparison, and Substitution Control

KB-6167F is commonly considered when a project needs a more robust FR-4 platform for multilayer and lead-free production. The material decision often appears in industrial electronics, communications hardware, server-related boards, automotive electronics, test equipment, power control boards, and products with long service-life expectations.

Typical applications of KB-6167F PCB laminate

Industrial controllers and automation electronics
Communication equipment and networking hardware
High-layer-count multilayer PCBs
Automotive control boards and reliability-sensitive electronics
Power supplies, test instruments, and embedded computing boards
Lead-free PCBA requiring better thermal process margin than standard FR-4

Material option	Typical Tg class	Best-fit manufacturing intent	Substitution note
Standard FR-4	Normal Tg	Cost-sensitive general boards	Not equivalent when KB-6167F is specified for reliability
KB-6165 series	Mid Tg	Lead-free-compatible cost/performance balance	Requires approval if drawing calls KB-6167F
KB-6167F	High Tg	High-reliability multilayer and lead-free assembly projects	Use approved laminate/prepreg construction
KB-6168LE	Higher thermal/low Z-CTE class	More demanding low Z-CTE or automotive-type projects	Do not upgrade or downgrade without customer approval

If the project is centered on very low Z-axis expansion, the adjacent page KB-6168LE PCB laminate may be a closer material discussion. If the project is focused on environmental compliance rather than thermal margin, use the halogen-free FR-4 PCB page instead.

Request a KB-6167F PCB Quote

KB-6167F PCB Laminate Quote Package and FAQ

A useful quote package identifies the exact material requirement, complete stackup, fabrication notes, and assembly scope. Without these details, the quote may hide material availability questions, impedance uncertainty, lead-free process risk, or later customer approval delays.

RFQ data checklist

Gerber, ODB++, or IPC-2581 files
Fabrication drawing with KB-6167F material callout or approved AVL
Layer stackup with core/prepreg, copper weight, and finished thickness
Controlled impedance table and coupon requirements
Surface finish, solder mask, silkscreen, and marking requirements
Annual volume, prototype quantity, and lead time expectation
BOM, pick-and-place, assembly drawing, and test instruction for PCBA delivery

What is KB-6167F PCB laminate used for?

KB-6167F is used for high-reliability multilayer PCB projects that need high Tg, anti-CAF performance, low Z-axis expansion, and lead-free assembly compatibility.

Is KB-6167F a halogen-free material?

Do not assume KB-6167F is halogen-free unless the supplier datasheet, UL file, customer AVL, or compliance documentation confirms it. Kingboard has separate halogen-free material families, so the drawing must identify the exact requirement.

Can KB-6167F replace standard FR-4?

It can be specified instead of standard FR-4 when the project requires stronger thermal and reliability performance, but substitution must follow customer approval and qualification rules.

Is KB-6167F suitable for HDI PCB?

KB-6167F can be considered for HDI or dense multilayer boards when the design rules, lamination sequence, drilling structure, resin flow, and customer qualification support the build. The stackup and via structure require DFM review before release.

How should KB-6167F be specified on a fabrication drawing?

Specify the material model, approved supplier, stackup, copper weight, finished thickness, impedance requirements, compliance requirements, and whether equivalent materials are allowed with written approval.

Request a KB-6167F PCB Manufacturing Review

Highleap Electronics supports KB-6167F PCB fabrication and assembly for customers who need controlled high-Tg FR-4 multilayer production. Engineering feedback before production helps confirm material availability, stackup feasibility, impedance targets, assembly exposure, documentation needs, and long-term production consistency.

Send the complete manufacturing package through the Highleap quick quote form for review.
