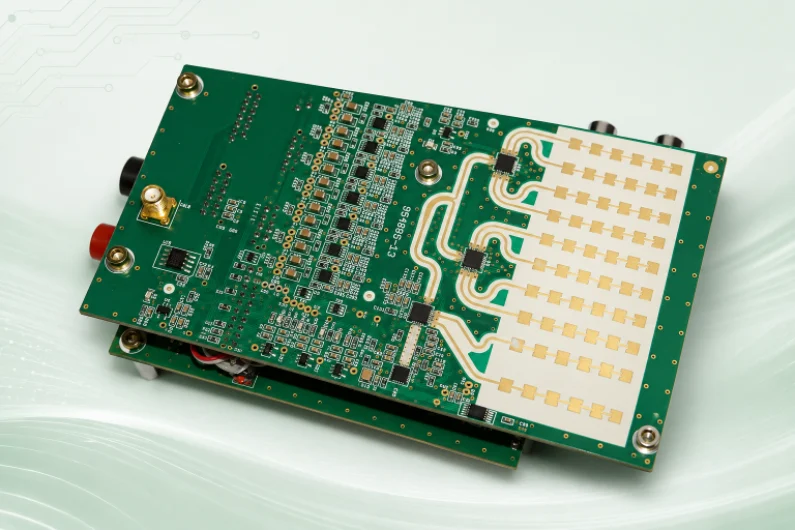

Rogers RO3003G2 PCB Manufacturing in China for 77/79 GHz Radar Boards

Highleap Electronics provides Rogers RO3003G2 PCB fabrication and PCB assembly for high-frequency radar boards, RF front-end modules, antenna circuits and Rogers hybrid stackups.

Send your Gerber, ODB++, stackup, Rogers material callout, impedance requirements and quantity target. Highleap Electronics will review material availability, fabrication feasibility, RF-critical dimensions, PCBA scope and lead-time options before quotation.

RO3003G2 PCB Manufacturing Capability

Rogers RO3003G2 PCB projects require more than standard high-frequency board processing. The build must protect RF geometry, material consistency, copper profile, drilling quality, surface finish and dimensional control from engineering samples through repeat production.

Highleap Electronics supports Rogers RO3003G2 PCB fabrication for:

• 77 GHz and 79 GHz radar antenna boards
• ADAS radar modules and RF front-end circuits
• Patch antenna, feed network and MIMO antenna PCBs
• RO3003G2 single-material or hybrid Rogers stackups
• Prototype, small-batch, pilot and scheduled production builds
• PCB assembly for RF modules that require SMT, inspection, sourcing and test preparation

Highleap can review bare PCB fabrication only or a complete PCBA project that includes component sourcing, SMT assembly, inspection and functional test preparation. Related application pages include automotive radar PCB manufacturing and millimeter-wave radar PCB fabrication.

Material, Stackup and RF Layer Review

The RO3003G2 material callout, stackup and RF layer position should be confirmed before price and lead time are finalized. The review checks whether RO3003G2 is required for the full board, only the antenna layer, or part of a hybrid construction with another Rogers material or digital-control section.

Important stackup items include Rogers laminate thickness, copper weight, finished board thickness, reference ground, solder mask rule, surface finish, controlled impedance and RF-critical mechanical tolerances.

Related references: Rogers RO3003 PCB material, high-frequency PCB materials and copper foil and surface finish for RF PCBs.

Prototype, Small Batch and Production Support

RO3003G2 radar and RF projects often move from engineering samples to pilot build and then to scheduled production. Highleap Electronics reviews the data package at each stage so material procurement, panel design, inspection requirements and PCBA preparation stay aligned.

• Prototype builds: focus on material confirmation, stackup feasibility, RF pattern dimensions and manufacturability.
• Small-batch builds: focus on repeatability, inspection records, coupon strategy, assembly process and test readiness.
• Production builds: focus on material planning, panel yield, quality documentation, packaging and release schedule.
• Supplier transfer builds: compare previous stackup, inspection records and production notes with the new manufacturing path.

For time-sensitive builds, a complete RFQ package is the fastest way to confirm price and schedule. Missing material callouts, stackup details, RF tolerances or PCBA files can delay review.

77/79 GHz Radar Antenna Fabrication Control

RO3003G2 is commonly used in 77/79 GHz radar antenna circuits where the PCB layout is part of the RF performance path. Trace geometry, patch antenna dimensions, feed network structure, edge profile and ground reference must be controlled during fabrication.

Highleap Electronics reviews RF-critical features before production:

• Antenna patch dimensions: etching tolerance and copper compensation should match the approved RF drawing.
• Feed network geometry: trace width, spacing, bends and transitions should follow the released design.
• Reference ground: ground continuity, via fence and plane openings should be checked around the antenna region.
• Edge profile: routed edges, slots, plated edges or connector launch areas may need tighter mechanical control.
• Solder mask openings: RF areas may require specific mask clearance, opening or keep-out rules.

For adjacent RF topics, see high-frequency PCB manufacturing and high-frequency PCB design considerations.

Hybrid Rogers Stackup Options

Many radar and RF modules do not require RO3003G2 on every layer. RO3003G2 can be used for the antenna or RF layer while another Rogers material or digital-control section is used for other layers. The goal is to keep RF performance stable while controlling cost, thickness, assembly process and material lead time.

Hybrid stackups should be reviewed for lamination compatibility, CTE behavior, bonding material, reference planes, warpage risk and RF-to-digital transition.

For related materials, review Rogers RO4350B PCB fabrication, Rogers PCB materials and FR-4 and Rogers hybrid PCB materials.

Impedance, Edge Profile and RF Details

RO3003G2 radar boards can include features where small fabrication differences affect RF behavior. The manufacturing review should cover controlled impedance, copper shape, routing edge quality, launch geometry, via fence and finish selection.

• Controlled impedance: target values should be matched to the final stackup, copper thickness and coupon plan.
• RF launch structure: connector launches, feed points or waveguide transitions may require specific routing and plating control.
• Board outline: antenna edges, slots and keep-out areas should follow customer mechanical tolerance requirements.
• Via fence and grounding: RF ground via patterns should be checked for drill capability and registration.
• Surface finish: finish selection should consider solderability, storage, assembly and RF region requirements.

Useful references include controlled impedance PCB fabrication, PCB edge plating and ENEPIG vs ENIG surface finish.

PCBA, Inspection and Test Support

Highleap Electronics supports bare RO3003G2 PCB fabrication and assembled RF PCBAs. When assembly is required, the PCB stackup, surface finish, solder mask, connector placement and inspection method should be reviewed together with the BOM and test plan.

Assembly support

• SMT assembly for RF front-end ICs, MCUs, power devices, connectors and passive networks
• Connector assembly for board-to-board, RF, edge, automotive or custom interconnects
• Stencil and solder paste review for fine-pitch and thermal-pad components
• AOI, X-ray or first-article inspection based on package type and customer requirements

Sourcing and test support

• BOM review for manufacturer part numbers, approved alternates and do-not-substitute parts
• Partial-turnkey, full-turnkey or consigned component models
• Programming support when firmware files and procedures are supplied
• Functional test preparation according to customer procedure, fixture and pass/fail criteria

For PCBA-related pages, see turnkey PCB assembly, electronic component sourcing and functional testing for PCB assemblies.

RO3003G2 PCB RFQ Package

A complete RFQ package helps Highleap Electronics confirm material path, fabrication process, PCBA scope, price and lead time with fewer clarification rounds.

• Gerber X2, ODB++ or IPC-2581 fabrication files
• NC drill file with hole sizes, plated holes, non-plated holes and tolerances
• Stackup drawing with Rogers RO3003G2 material callout and any hybrid material callout
• Copper weight, finished board thickness and surface finish requirements
• Controlled impedance table and RF-critical dimension notes
• Patch antenna, RF feed, edge profile, slot or plated-edge requirements if applicable
• Solder mask rules for RF areas and assembly areas
• BOM, CPL and assembly drawing if PCBA is required
• Inspection, test, documentation, packaging or quality requirements
• Prototype quantity, target lead time and expected production volume

Highleap Electronics can review Rogers RO3003G2 PCB projects for prototype, small batch, production transfer or turnkey PCBA.

Submit a Rogers RO3003G2 PCB Quote or contact Highleap Electronics for material, stackup, RF fabrication, PCBA or production-transfer review.
